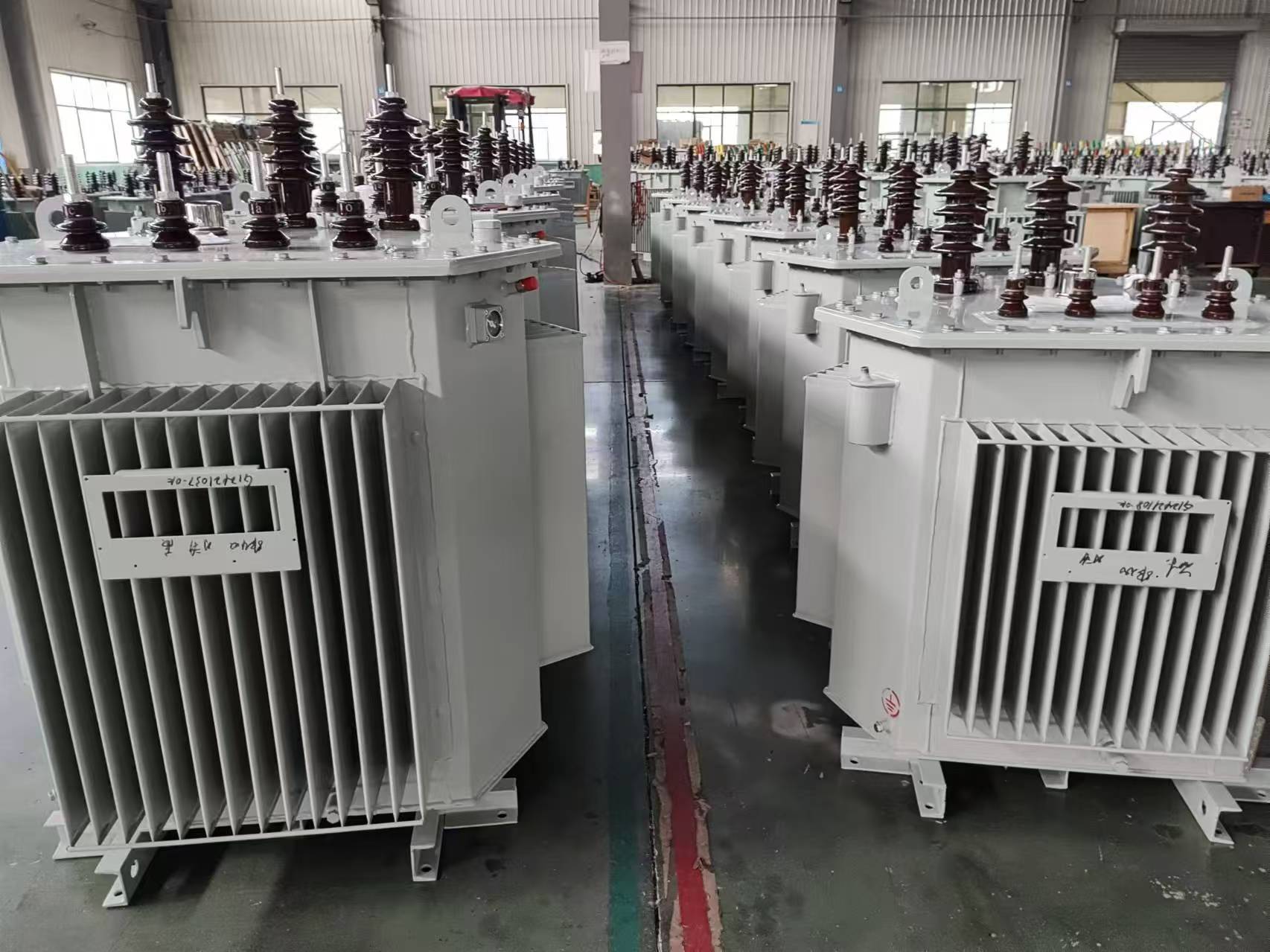

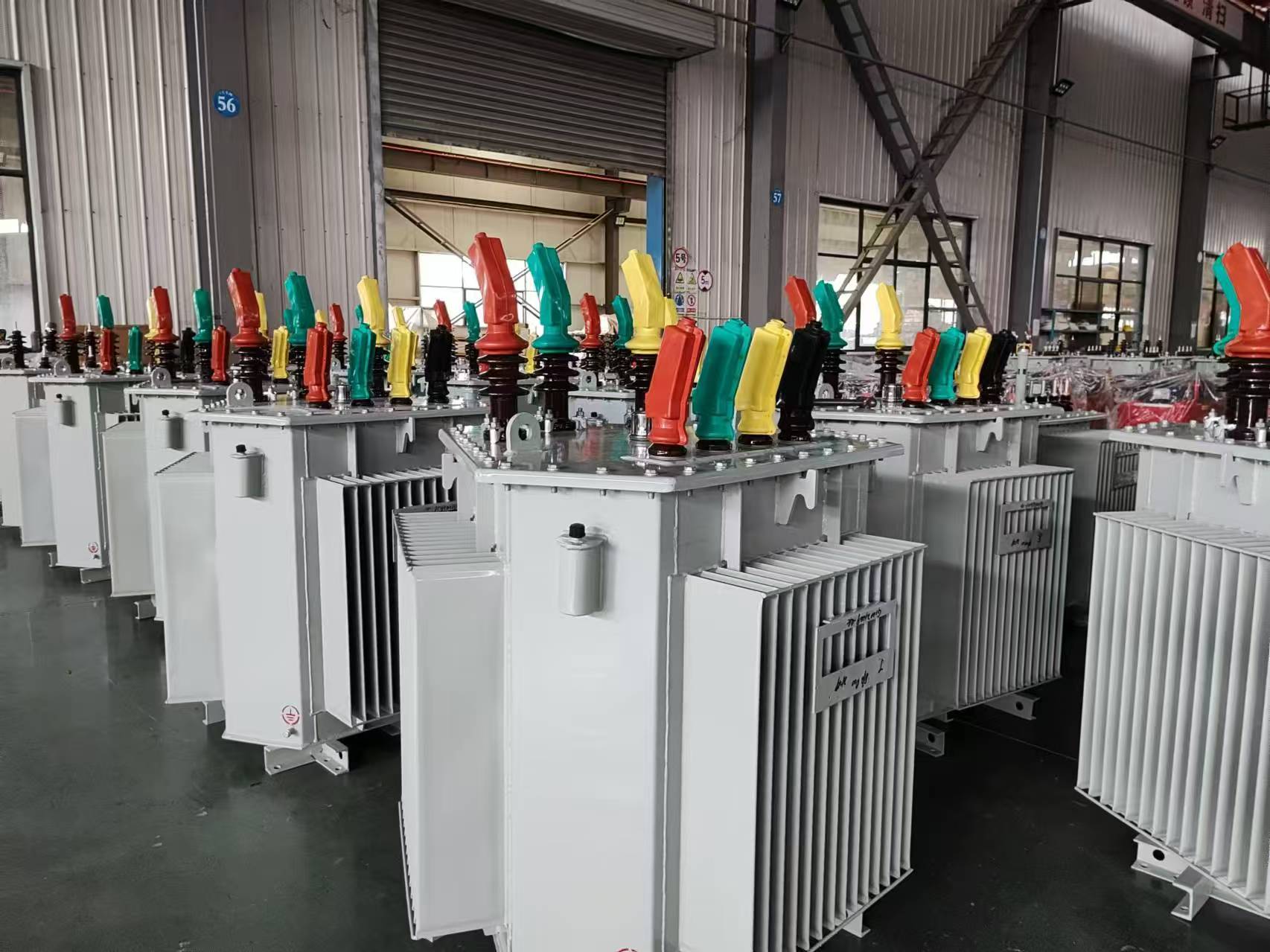

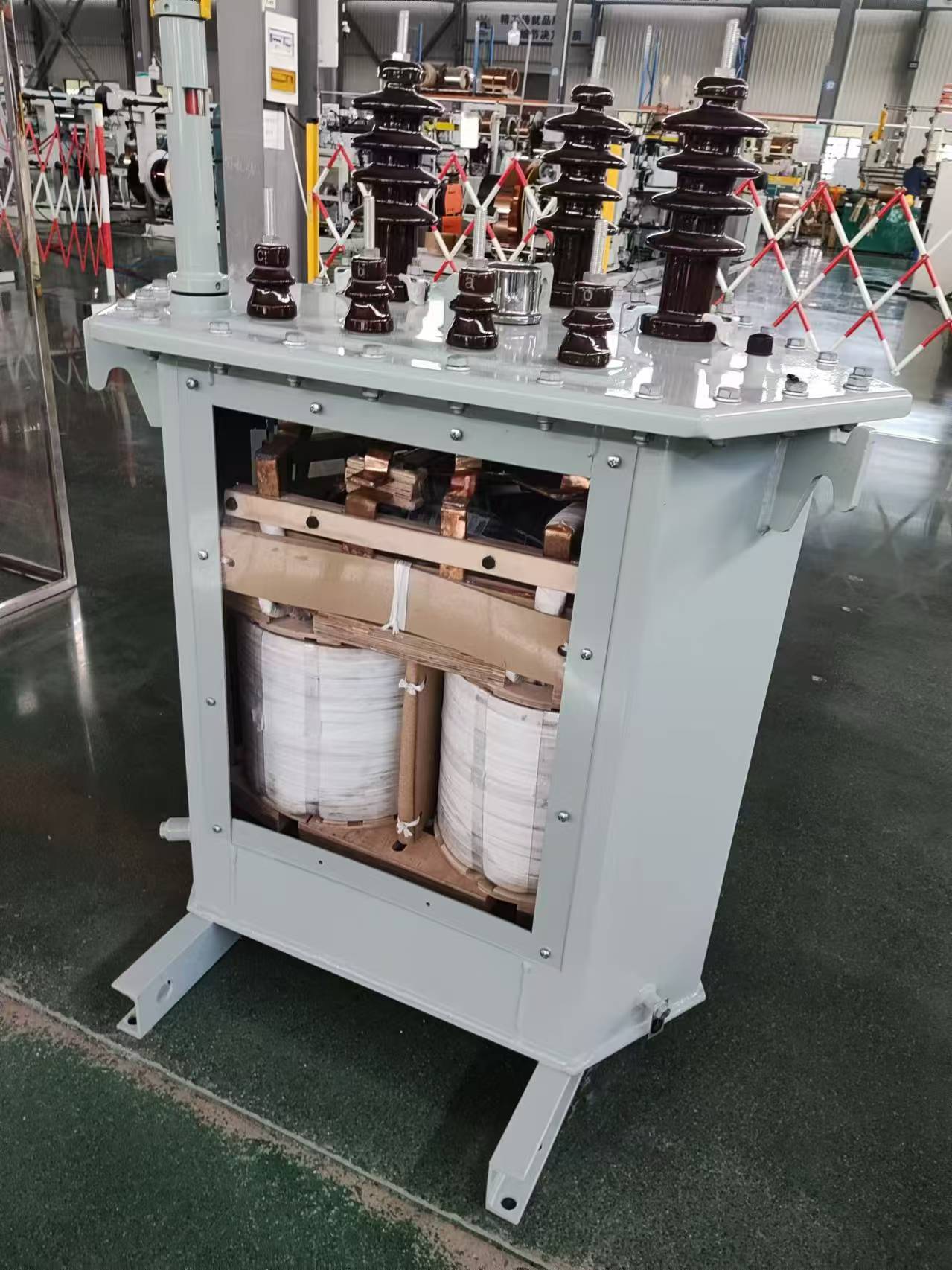

800KVA Amorphous Transformer
The SBH21-M.RL-800 amorphous alloy transformer is a high-performance, energy-efficient, environmentally friendly, and safe power equipment. It features extremely low hysteresis and eddy current losses, significantly reducing no-load losses and improving the energy efficiency ratio, achieving energy-saving effects. At the same time, the transformer also has characteristics of environmental protection and safety.
Main Features:
Energy-saving and efficient: Utilizing amorphous alloy materials, it significantly reduces no-load and load losses, improving the energy efficiency ratio.
Safe and reliable: Using high-quality insulating materials and equipped with explosion-proof devices to ensure safe operation.
Low noise operation: Optimizing the core and winding structure effectively reduces the noise level during operation.
Strong resistance to short circuits: Amorphous alloy materials have high mechanical strength and can withstand large short-circuit current shocks.
Compact and lightweight: Small in size and light in weight, making transportation and installation convenient.
Technical Parameters (Example):
Rated capacity: 800kVA
Voltage level: 10kV/0.4kV or other different configurations
Cooling method: Oil-immersed self-cooling or dry-type air self-cooling
Connection group: Yyn0 or Dyn11
Insulation level: Class B or higher
Protection level: IP20 or higher
No-load and load losses: Both are kept at a low level. Specific values can be referenced in the technical specifications provided by the manufacturer.
Application Scenarios:
The SBH21-M.RL-800 amorphous alloy transformer is suitable for multiple fields, including but not limited to:
Industrial field: Suitable for various factories, production workshops, and other occasions that require efficient and energy-saving power supply.
Commercial field: Suitable for shopping malls, office buildings, hotels, and other facilities to provide reliable power support.
Civil field: Suitable for residential areas, schools, hospitals, and other public buildings to ensure daily electricity needs.
Special environments: Suitable for communication base stations, research institutions, and other places with certain power quality requirements.
Comparison with Other Models:
Compared with the SBH21-M.RL-630, the SBH21-M.RL-800 has a larger rated capacity, suitable for higher load power demands. At the same time, due to the amorphous alloy materials and advanced manufacturing processes it employs, the SBH21-M.RL-800 performs better in energy-saving, environmental protection, and safety aspects.
