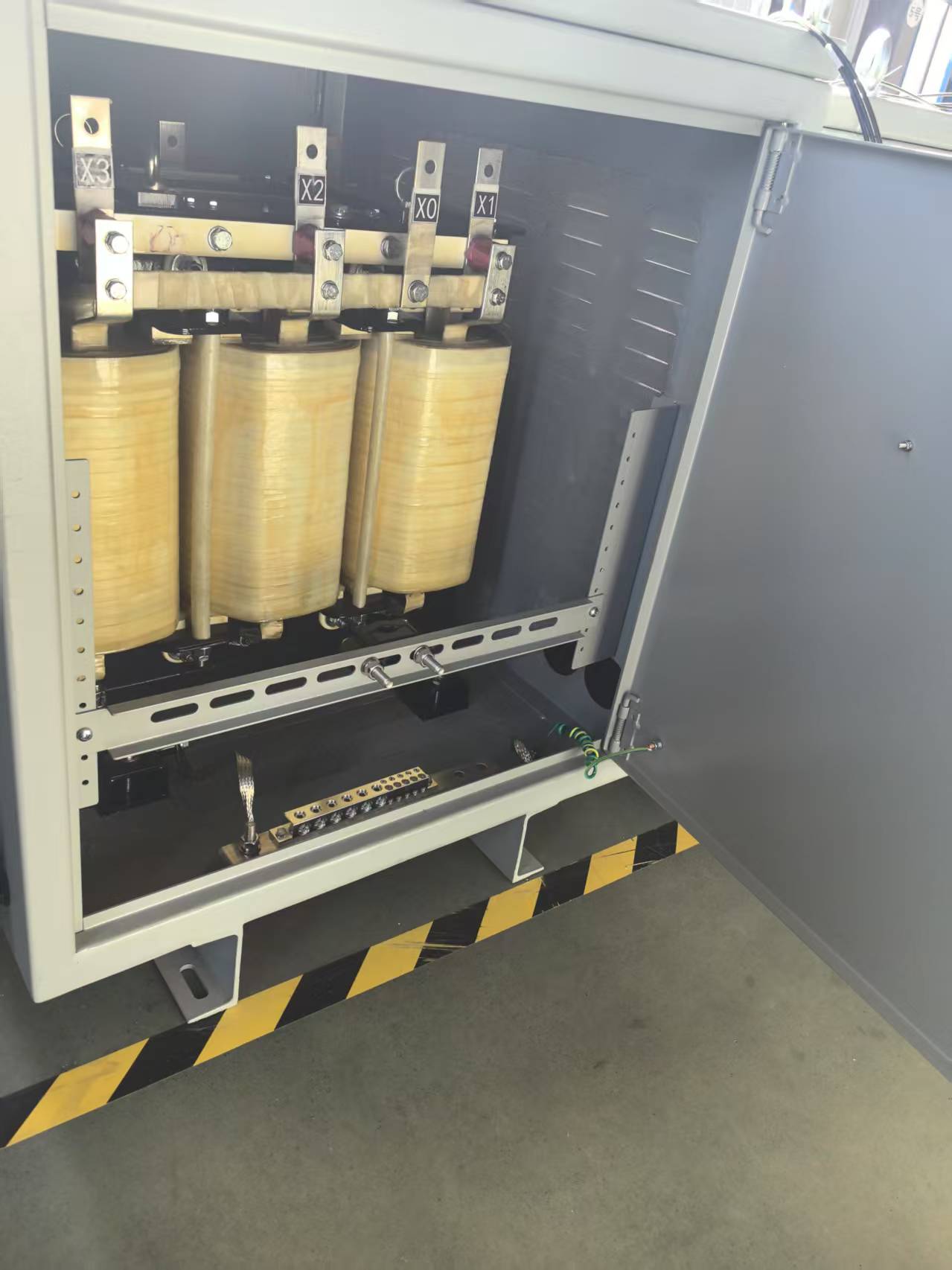

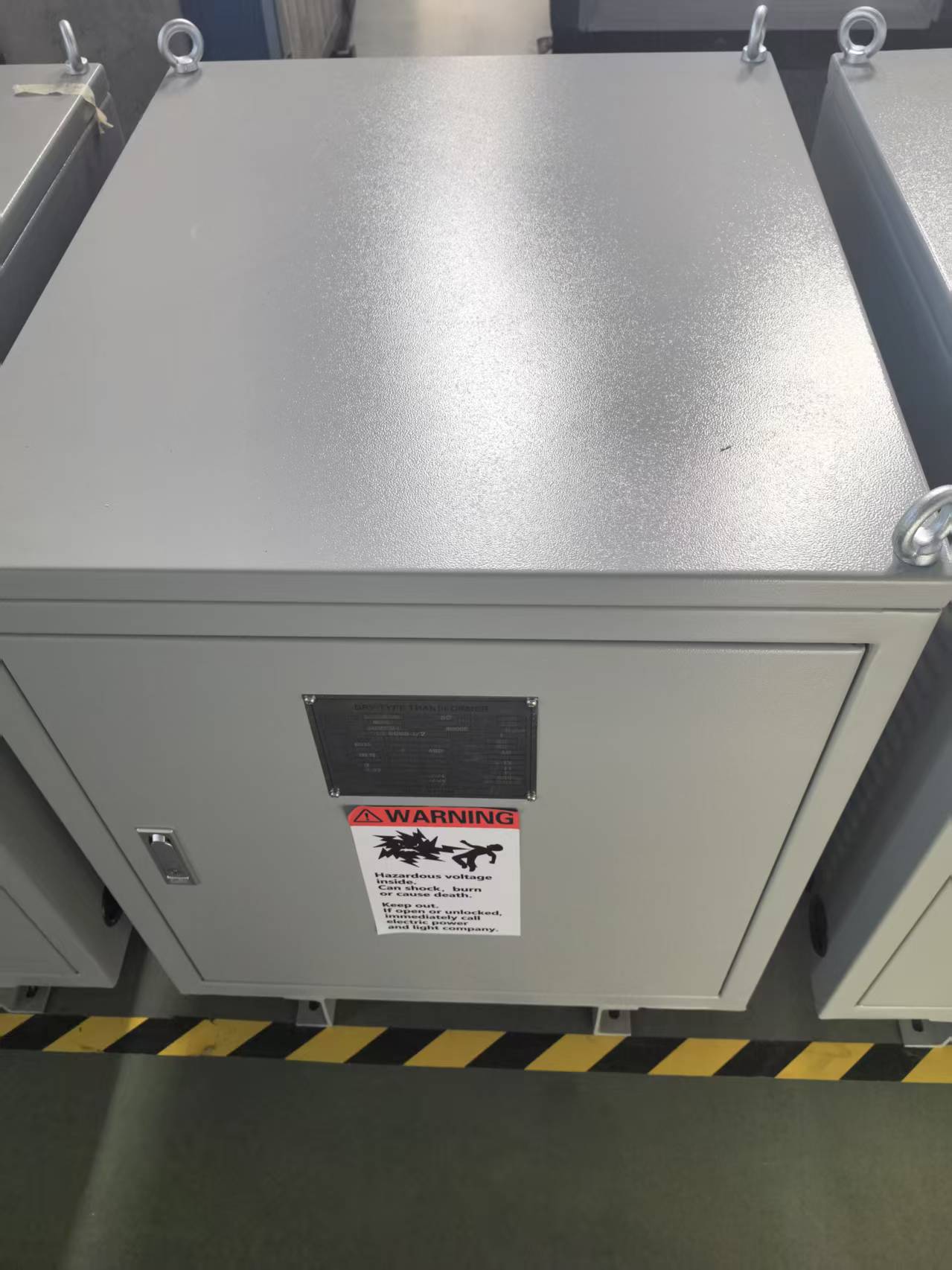

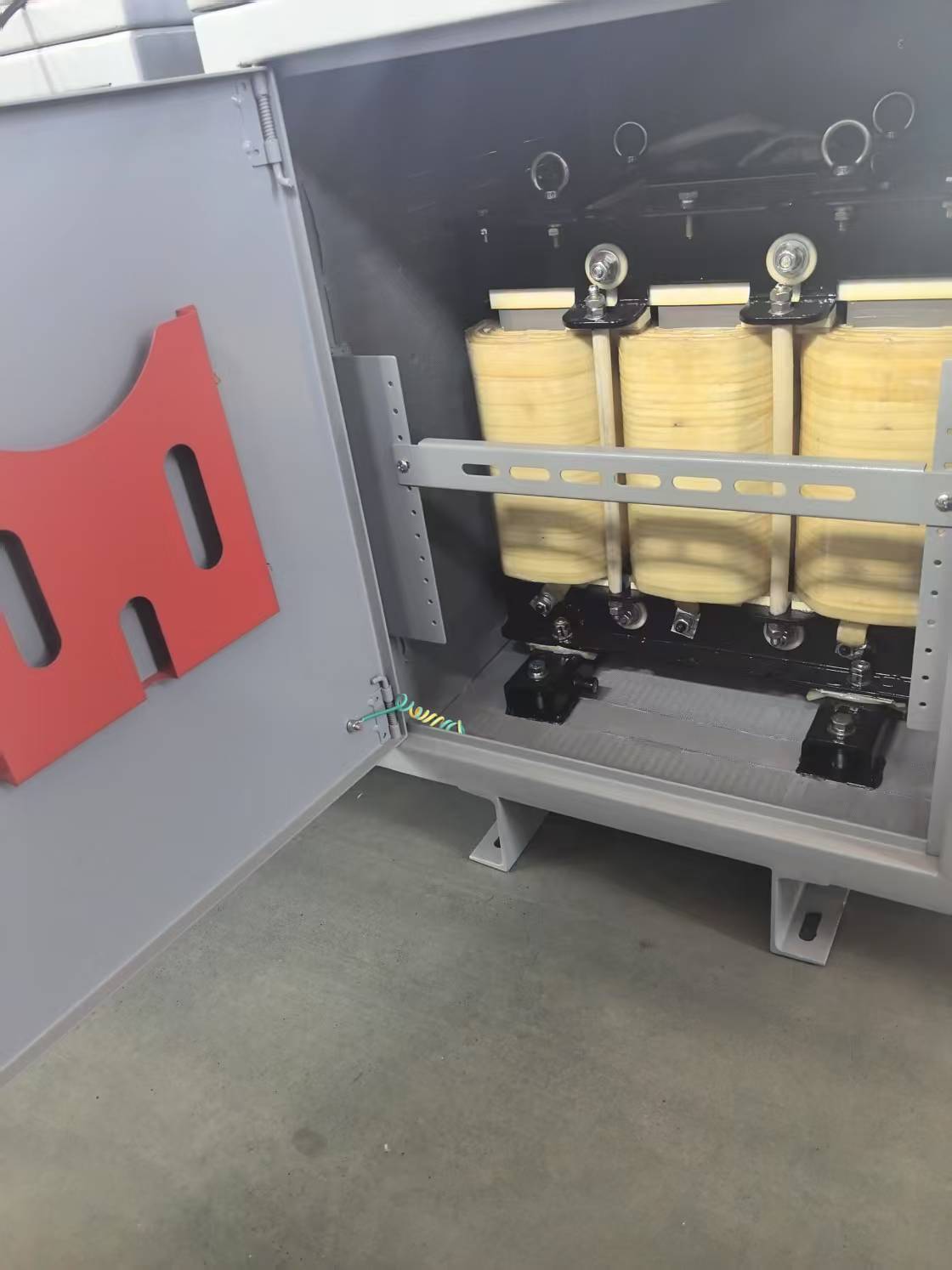

Dry Type Transformer SG-30KVA
SG-30KVA is a three-phase dry-type isolation transformer widely used in occasions requiring electrical isolation and voltage conversion. High Efficiency、Safety Isolation
The SG-30KVA three-phase dry-type isolation transformer is manufactured using high-quality materials and advanced technology, suitable for various power supply occasions with AC 50/60Hz, and input and output voltages not exceeding 500V.
Dry Type Transformer Technical Parameters
Capacity: 30KVA
Three Phase Dry Type Transformer Input Voltage: 380V (can be customized according to customer requirements)
Output Voltage: 220V (can be customized according to customer requirements)
Transformer Connection Group: D/yn11
Transformer Operating Environment Temperature: -15℃～+40℃
Transformer Efficiency: ≥95%
Transformer Insulation Resistance: ≥50MΩ
Transformer Electrical Strength: No breakdown or flashover phenomenon during 2000V power frequency sine voltage for 1 minute
Transformer Product Features
High Efficiency: With high-quality materials and advanced technology, it features large capacity, high efficiency, and stable voltage transformation.
Safety Isolation: Through electrical isolation technology, it ensures no direct electrical connection between the input and output circuits, enhancing system safety.
Precise Voltage Transformation: It can accurately adjust the input voltage to the required output voltage level, suitable for various voltage standard conversion tasks.
Optimized Power Supply System Quality: Overcomes the phenomenon of neutral point drift, improves the operation quality of the three-phase power supply system, and ensures stable and high-quality power supply.
Adopts Safe Insulation Design: Multi-coil (double coil or more) structure design, the primary and secondary windings are independent and insulated from each other, with fixed and tap-type voltage transformation ratios, capable of achieving voltage boosting or bucking functions.
Transformer Application Scope
The SG-30KVA three-phase dry-type isolation transformer is widely used in substations, high-rise buildings, airports, stations, printing, machine tools, docks, mining enterprises, tunnels, and other places for power distribution and the use of imported equipment.
