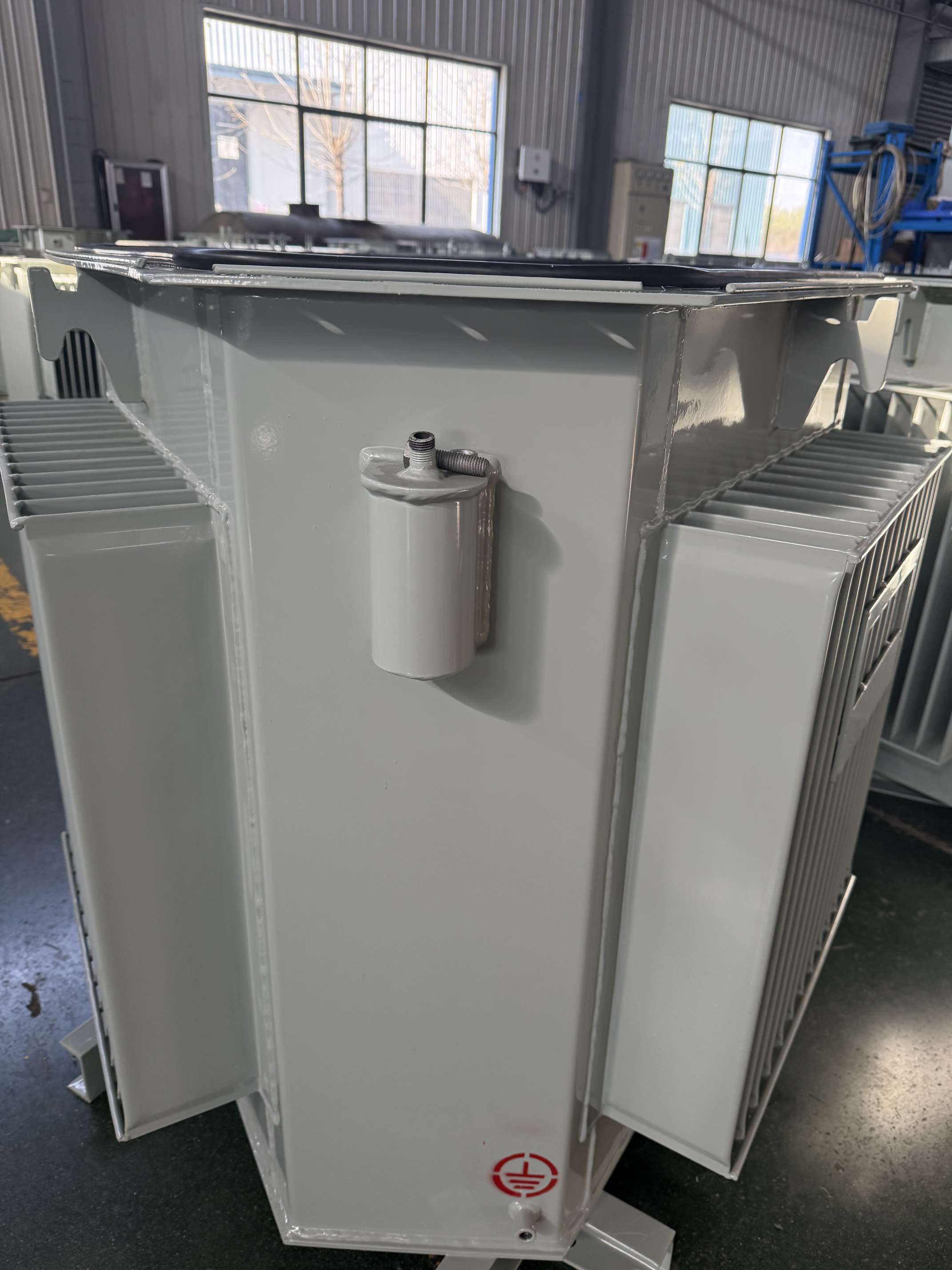

Amorphous Alloy Transformer
1. Significantly Reduced No-load Loss: Achieves notable energy savings and reduced consumption compared to traditional silicon steel core transformers.
2. Enhanced Short-Circuit Resistance: Incorporates a circular coil structure and a binding hole strap fastening method to greatly improve short-circuit resistance.
3. Harmonics Mitigation: Utilizes a Dyn11 connection group to minimize the impact of harmonics on the power grid, enhancing power supply quality.
4. Low Noise Operation: Features a seamless, continuously wound amorphous core and symmetrical three-phase magnetic circuit design to significantly reduce noise levels.
Product Details

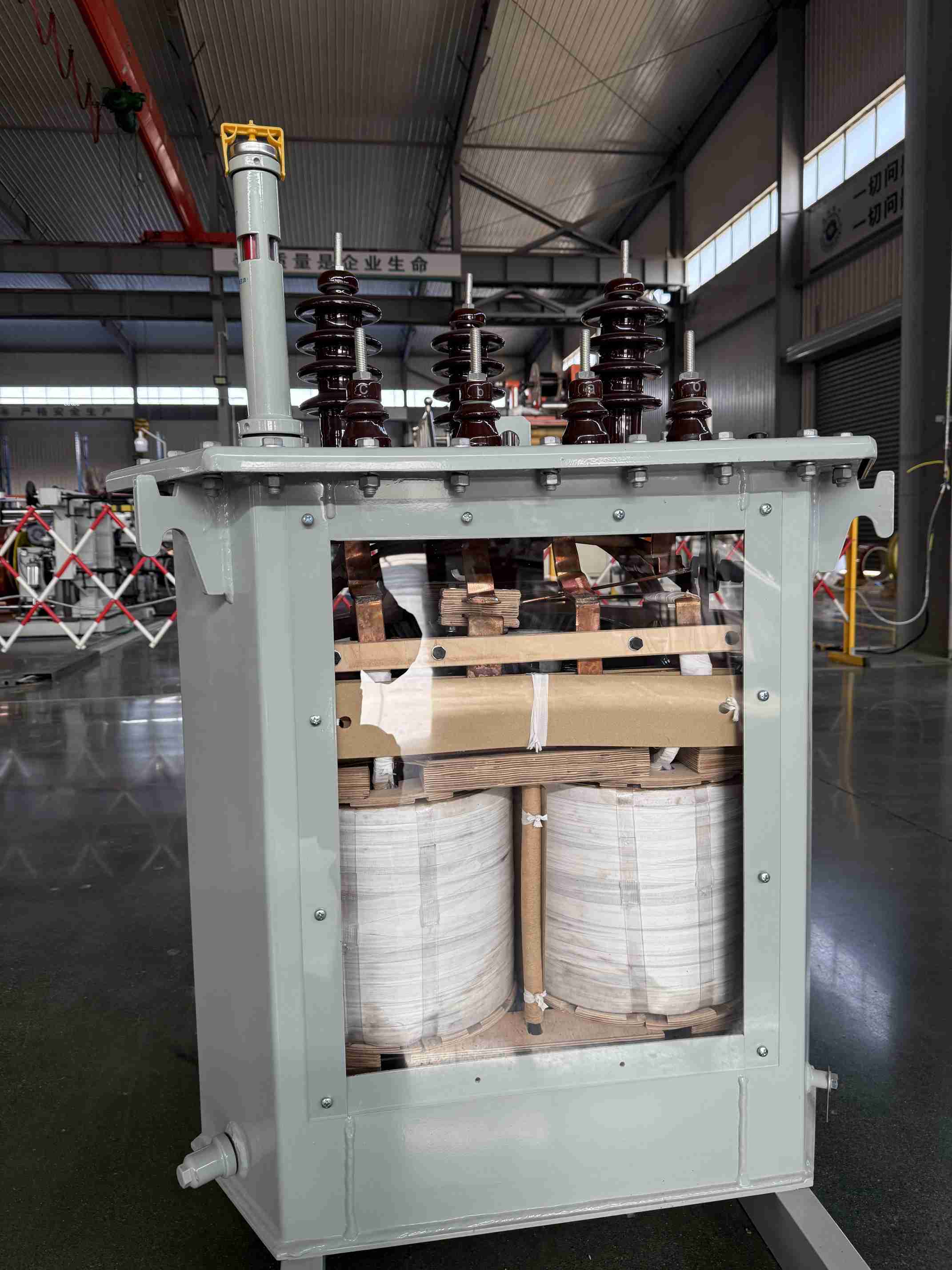

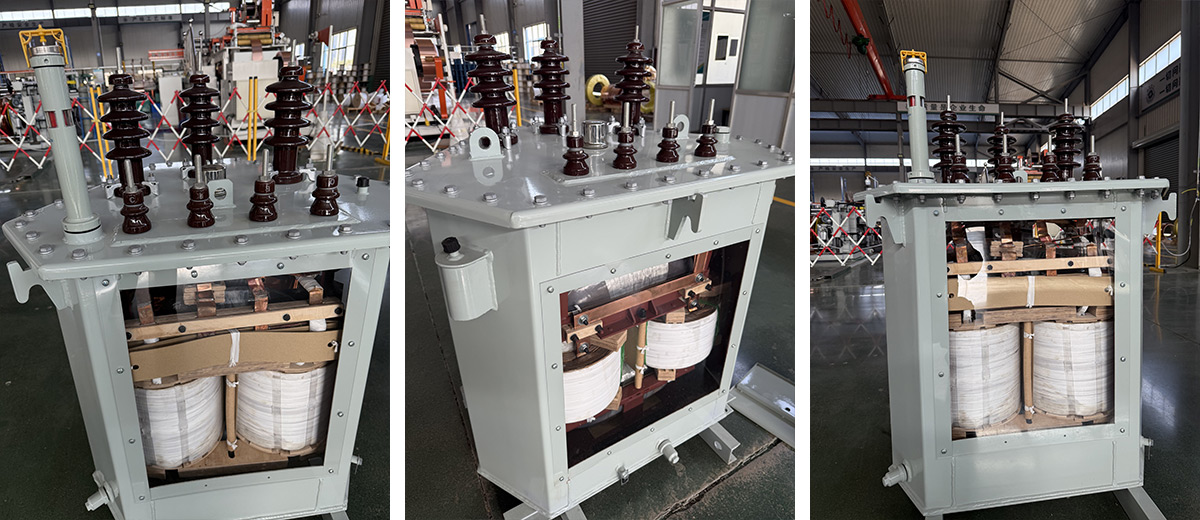

The three-dimensional wound core transformer features an advanced circular coil structure and a symmetrical three-phase magnetic circuit design. It delivers exceptional energy efficiency, noise reduction, and enhanced short-circuit resistance, making it an ideal choice for reliable, high-performance applications.
Product Features
Symmetrical Three-Phase Magnetic Circuit: Ensures balanced three-phase no-load currents and even load distribution.

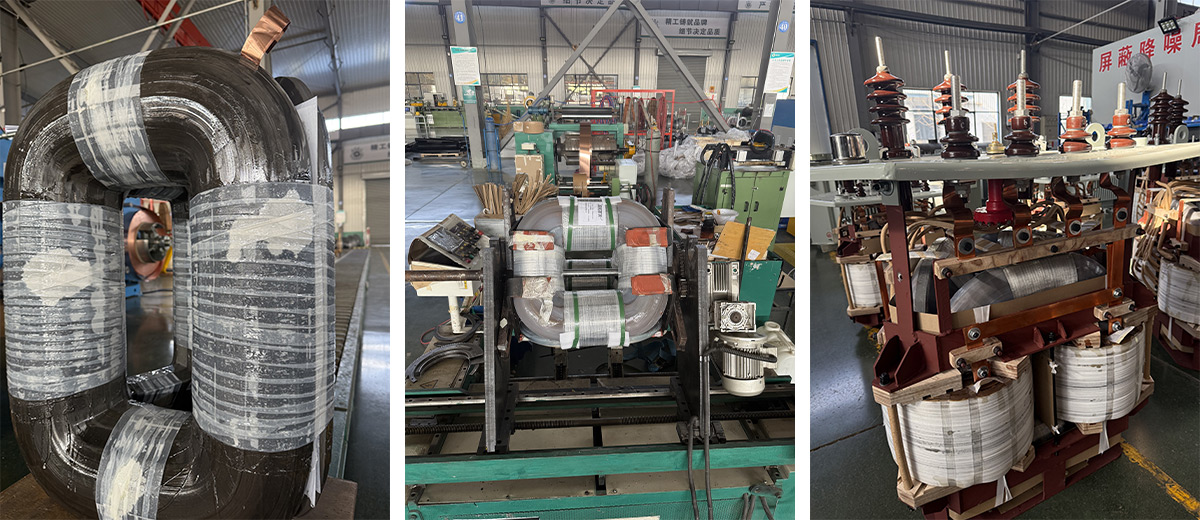

High-Quality Materials: Built with a seamless amorphous strip core wound by a specialized core winding machine for superior performance.
Strict Quality Assurance: Each transformer undergoes rigorous routine testing before leaving the factory to ensure safe and reliable operation.
Specifications
Rated capacity: 30-1600kVA
Rated frequency: 50Hz
Voltage level: 10kV
Connection group number：Dyn11
Cooling method: ONAN
