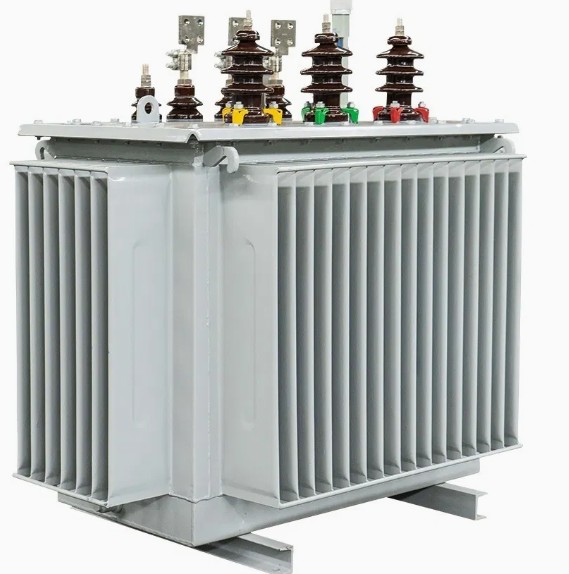

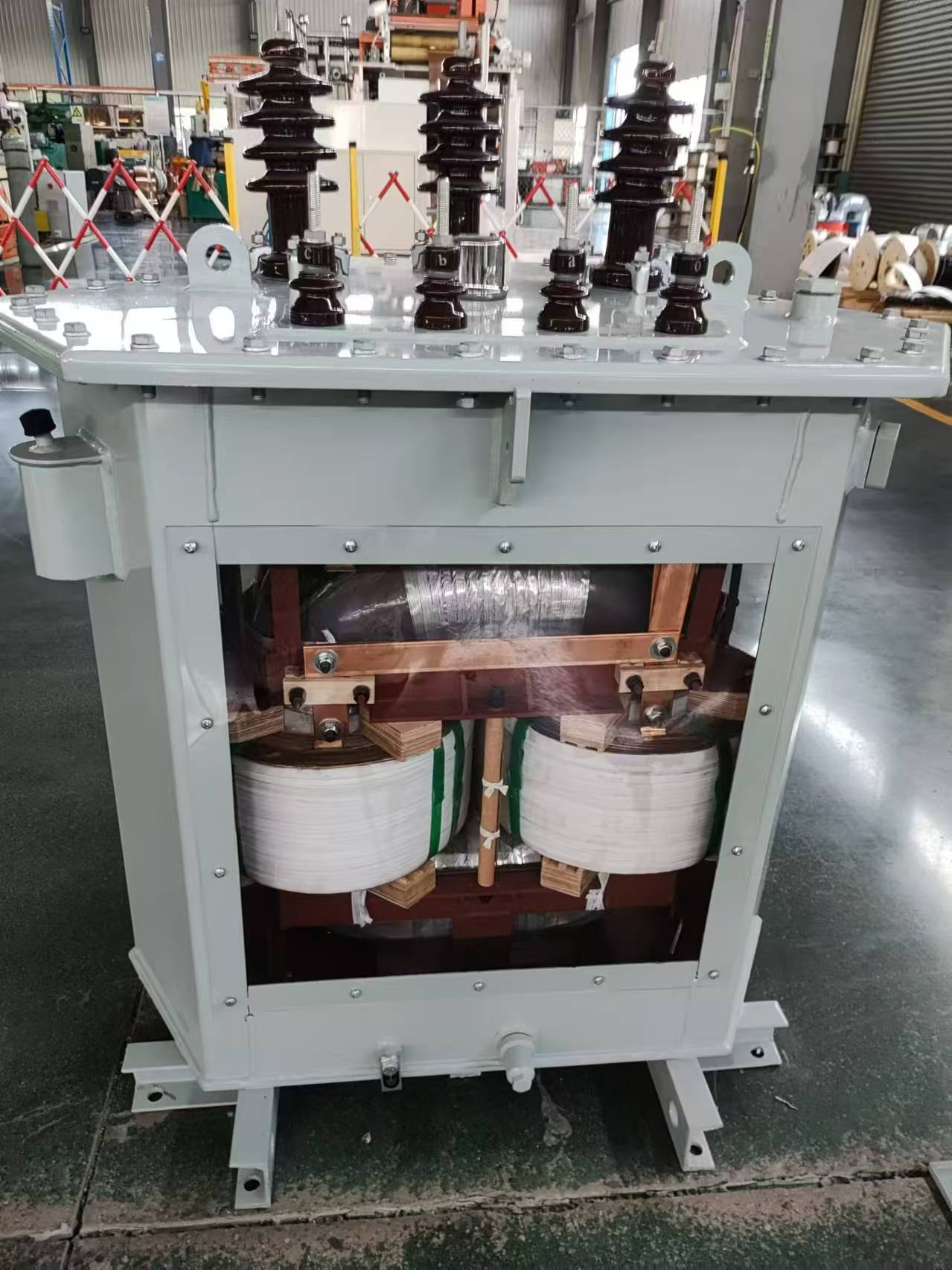

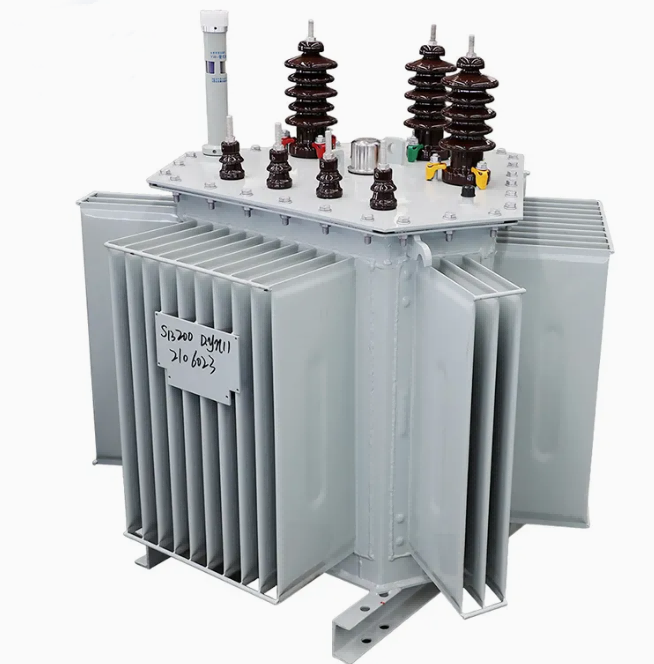

2000KVA Amorphous Core Transformer
The SBH21-M.RL-2000 amorphous alloy transformer utilizes advanced amorphous alloy materials as its core, offering exceptional energy-saving effects, environmental protection characteristics, and a high level of safety and reliability, making it a preferred choice for power systems. This model of transformer not only pursues efficiency and stability in design but also demonstrates outstanding performance and a broad range of application prospects in practical use.
Main Features:
Energy-efficient and efficient: The use of amorphous alloy materials significantly reduces no-load and load losses, improving the energy efficiency ratio.
Safe and reliable: High-quality insulating materials are used, equipped with explosion-proof devices to ensure safe operation.
Low noise operation: The core and winding structures are optimized to effectively reduce noise levels during operation.
Strong resistance to short circuits: Amorphous alloy materials have high mechanical strength and can withstand large short-circuit current shocks.
Compact and lightweight: Small in size and light in weight, making transportation and installation convenient.
Technical Parameters:
Rated capacity: 2000kVA
Voltage level: 10kV/0.4kV or other configurations
Cooling method: Oil-immersed self-cooling or dry air self-cooling
Connection group: Yyn0 or Dyn11
Insulation class: Class B or higher
Protection level: IP20 or higher
No-load and load losses: Both are kept at a low level; specific values can be referenced in the technical specifications provided by the manufacturer.
Application Scenarios:
The SBH21-M.RL-2000 amorphous alloy transformer is suitable for various fields, including but not limited to:
Industrial sector: Suitable for various factories, production workshops, and other occasions that require efficient and energy-saving power supply.
Commercial sector: Suitable for shopping malls, office buildings, hotels, and other facilities to provide reliable power support.
Civil sector: Suitable for residential areas, schools, hospitals, and other public buildings to ensure daily electricity needs.
Special environments: Suitable for communication base stations, research institutions, and other places with certain power quality requirements.
Comparison with Other Models:
Compared with the SBH21-M.RL-1600, the SBH21-M.RL-2000 has a larger rated capacity, suitable for higher load power demands. Moreover, due to the amorphous alloy materials and advanced manufacturing processes it employs, the SBH21-M.RL-2000 exhibits superior performance in energy saving, environmental protection, and safety.
