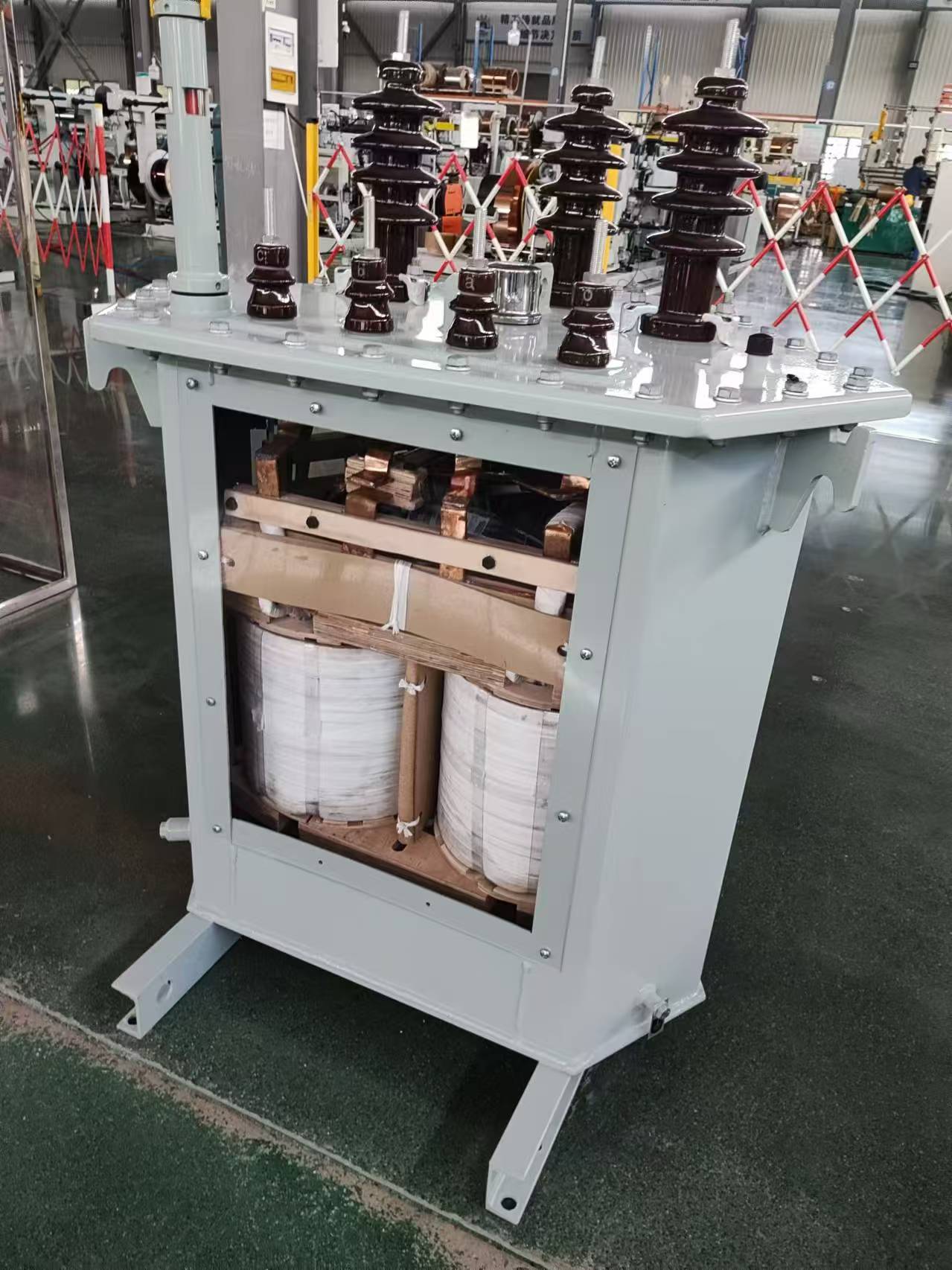

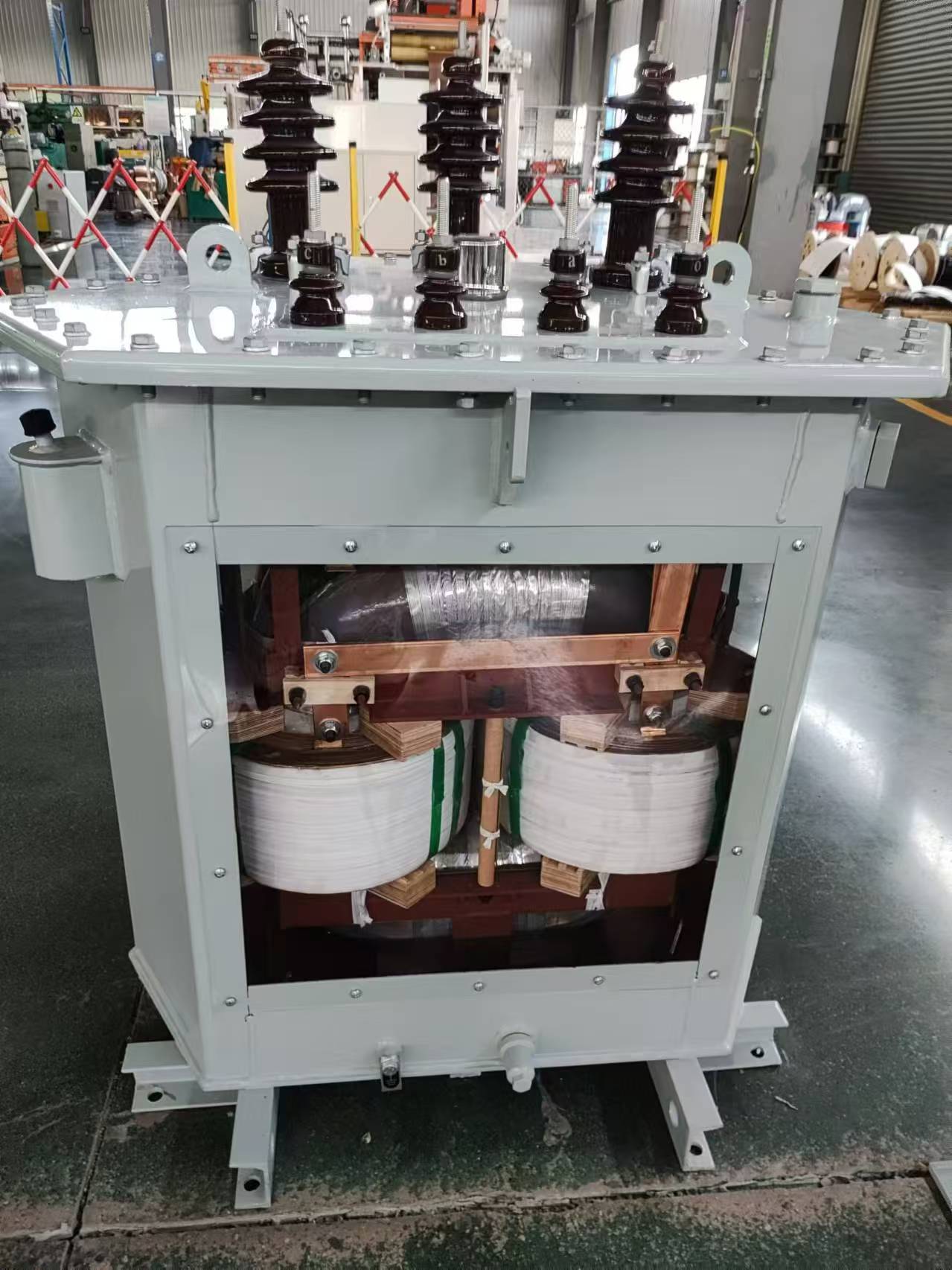

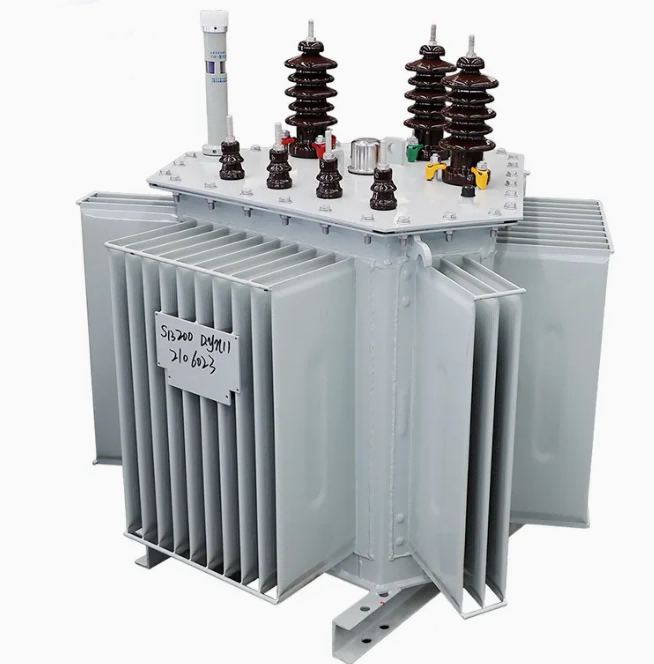

160KVA Amorphous Transformer
The SBH21-M.RL-160 amorphous alloy transformer uses amorphous alloy material as its core, which has extremely low hysteresis loss and eddy current loss, thereby significantly reducing no-load loss and improving the energy efficiency ratio, achieving energy-saving effects. At the same time, the transformer also has environmental protection and safety features.
Main Features
Energy-saving and efficient: The use of amorphous alloy materials significantly reduces no-load and load losses, improving the energy efficiency ratio.
Safe and reliable: High-quality insulating materials are used, equipped with explosion-proof devices to ensure safe operation.
Low noise operation: The core and winding structure are optimized to effectively reduce the noise level during operation.
Strong resistance to short circuits: Amorphous alloy materials have high mechanical strength and can withstand large short-circuit current shocks.
Compact and lightweight: Small in size and light in weight, making transportation and installation convenient.
Technical Parameters (Example)
Rated capacity: 160kVA
Voltage level: 10kV/0.4kV or other different configurations
Cooling method: Oil-immersed self-cooling or dry-type air self-cooling
Connection group: Yyn0 or Dyn11
Insulation level: Class B or higher
Protection level: IP20 or higher
No-load and load losses: Both are kept at a low level, specific values can be referenced in the technical specifications provided by the manufacturer.

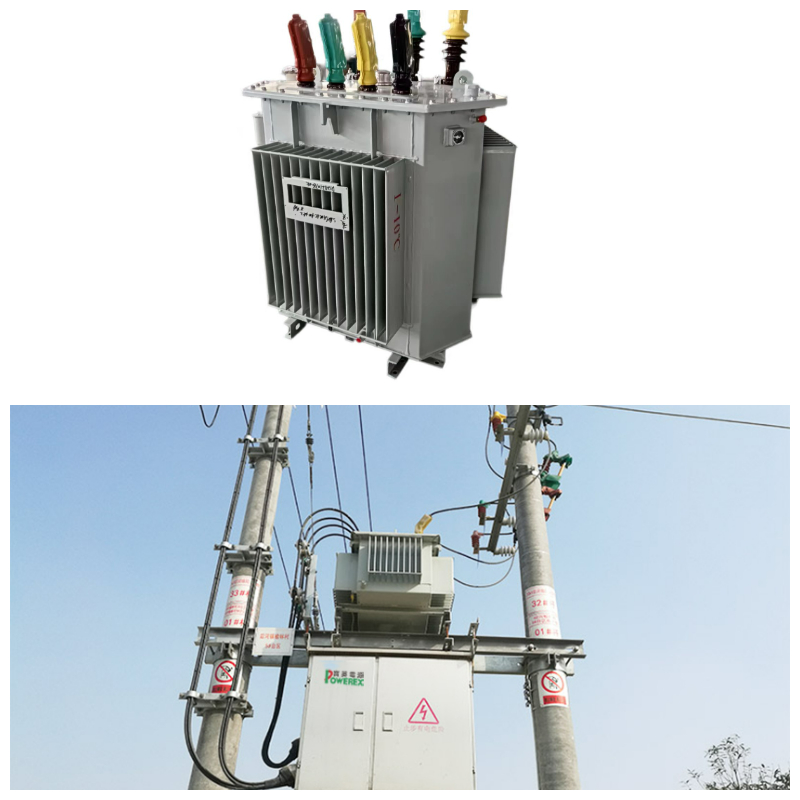

Application Scenarios
The SBH21-M.RL-160 amorphous alloy transformer is suitable for multiple fields, including but not limited to:
Industrial field: Suitable for various factories, production workshops, and other occasions that require efficient and energy-saving power supply.
Commercial field: Suitable for shopping malls, office buildings, hotels, and other facilities to provide reliable power support.
Civil field: Suitable for residential areas, schools, hospitals, and other public buildings to ensure daily power needs.
Special environments: Suitable for communication base stations, research institutions, and other places with certain power quality requirements.
Comparison with other models
Compared with the SBH21-M.RL-100, the SBH21-M.RL-160 has a larger rated capacity, suitable for higher load power demands. At the same time, due to the amorphous alloy material and advanced manufacturing processes it uses, the SBH21-M.RL-160 performs better in energy-saving, environmental protection, and safety aspects.
