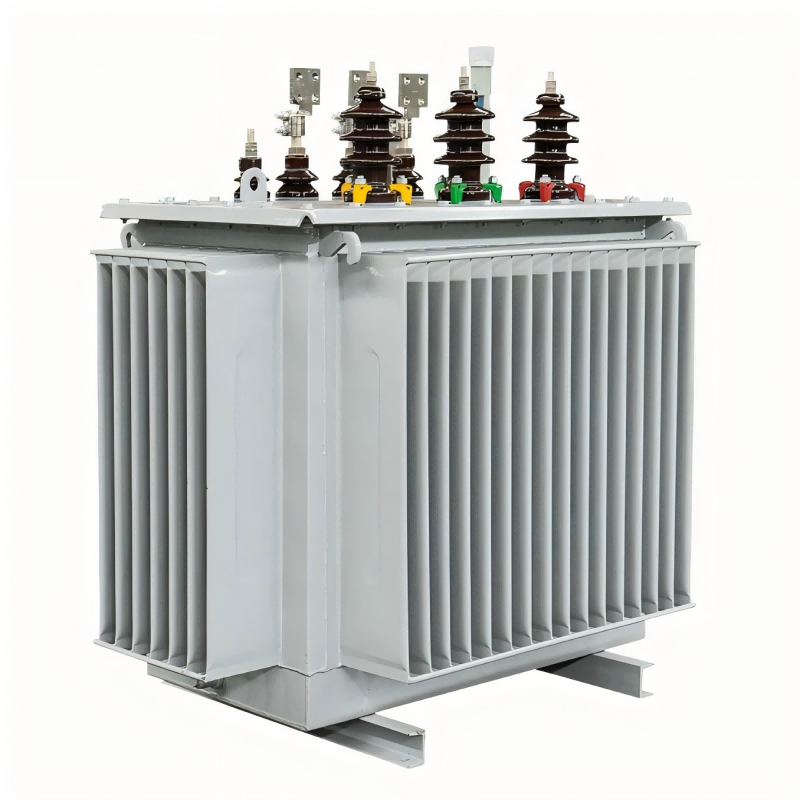

800kVAOil-Immersed Transformer
High Efficiency and Energy Saving: Utilizing new materials and optimized design, it complies with the latest energy efficiency standards, reducing energy consumption and operational costs.
Environmental Protection and Safety: High-quality insulating oil is used, providing excellent insulation and heat dissipation properties; additionally, it is equipped with an explosion-proof device to ensure safe operation.
Safety and Stability: It has good overload capacity and short-circuit resistance, ensuring long-term stable operation.
Low Noise: The structure of the core and windings is optimized, effectively reducing the noise level during operation.
Easy Installation: The size is moderate, and the weight is light, facilitating transportation and installation.
The S22-M-800 is a high-performance oil-immersed transformer with a rated capacity of 800kVA. Part of the advanced S22 series, this model is engineered for optimal efficiency and energy savings, making it an ideal choice for applications that demand reliable and sustainable power distribution. It combines cutting-edge technology with robust design to meet the latest energy efficiency standards, ensuring long-term operational savings and minimized environmental impact.
Main Features:
High Efficiency and Energy Saving: The S22-M-800 is designed with new materials and an optimized configuration to significantly reduce both no-load and load losses. By improving the energy efficiency ratio, this transformer ensures lower energy consumption and reduced operational costs over time. Its performance is on par with the latest industry standards, providing an energy-efficient solution for industries and utilities that aim to reduce their carbon footprint and improve operational economics.
Environmental Protection and Safety: The transformer uses premium insulating oil, which not only offers superior insulation properties but also provides excellent heat dissipation during operation. This ensures that the transformer operates at optimal temperatures, reducing the risk of overheating. The inclusion of an explosion-proof device enhances safety, ensuring that the transformer can operate securely even under extreme conditions or during power surges. The S22-M-800 is designed to meet both environmental and safety regulations, making it a reliable choice for critical infrastructure.
Safety and Stability: The S22-M-800 transformer is equipped with excellent overload capacity and short-circuit resistance, which contribute to its long-term reliability. This makes it particularly suitable for areas where power demands may fluctuate or surge. Its design ensures stable and safe operation under various conditions, providing continuous, reliable power without compromising on performance.
Low Noise: The S22-M-800 is engineered with an optimized core and winding structure that significantly reduces noise levels during operation. This design feature is particularly valuable in environments where minimizing noise pollution is important, such as residential areas, schools, hospitals, and other noise-sensitive locations. With the S22-M-800, you can rely on quiet, efficient power without disturbing the surroundings.
Easy Installation: Designed with ease of installation in mind, the S22-M-800 is compact and lightweight compared to other transformers in its capacity range. Its moderate size and reduced weight make it easier to transport, install, and maintain. Whether used in new installations or for upgrading existing systems, the S22-M-800 simplifies the process and reduces installation time and costs.
Technical Parameters (Example):
Rated Capacity: 800kVA
Voltage Levels: Typically 10kV/0.4kV or customized configurations
Cooling Method: Oil-immersed self-cooling
Connection Group: Yyn0 or Dyn11
Insulation Class: Class B or higher
Protection Class: IP20 or higher
Application Scenarios:
The S22-M-800 transformer is versatile and ideal for a variety of applications:
Small and Medium Industrial Fields: The S22-M-800 is well-suited for factories, workshops, and other industrial operations that require a stable and reliable power supply. It can support machinery, production lines, and equipment with minimal downtime, ensuring smooth production processes. Its ability to handle varying power demands makes it perfect for industrial settings.
Commercial Fields: This transformer is also suitable for commercial use, including small and medium-sized shopping malls, office buildings, hotels, and retail centers. It ensures a steady power supply for lighting, HVAC systems, elevators, and other essential commercial infrastructure, keeping operations running efficiently and without interruption.
Civil Fields: For residential areas, schools, hospitals, and other public buildings, the S22-M-800 provides the necessary reliable power support. It ensures that daily operations, such as heating, lighting, and medical equipment, continue without power disruptions. Its high reliability makes it an excellent choice for critical public infrastructure.
Special Environments: The S22-M-800 is perfect for special applications such as communication base stations, research institutions, and data centers, where uninterrupted and high-quality power is critical. These environments require transformers that can maintain stability even under high demand and provide the necessary power quality to support sensitive equipment.
In conclusion, the S22-M-800 is a powerful, reliable, and energy-efficient transformer that is perfectly suited for a wide range of industrial, commercial, and public sector applications. Its design offers long-term savings, operational safety, and minimal environmental impact, making it an ideal choice for users seeking a high-performance power distribution solution.
