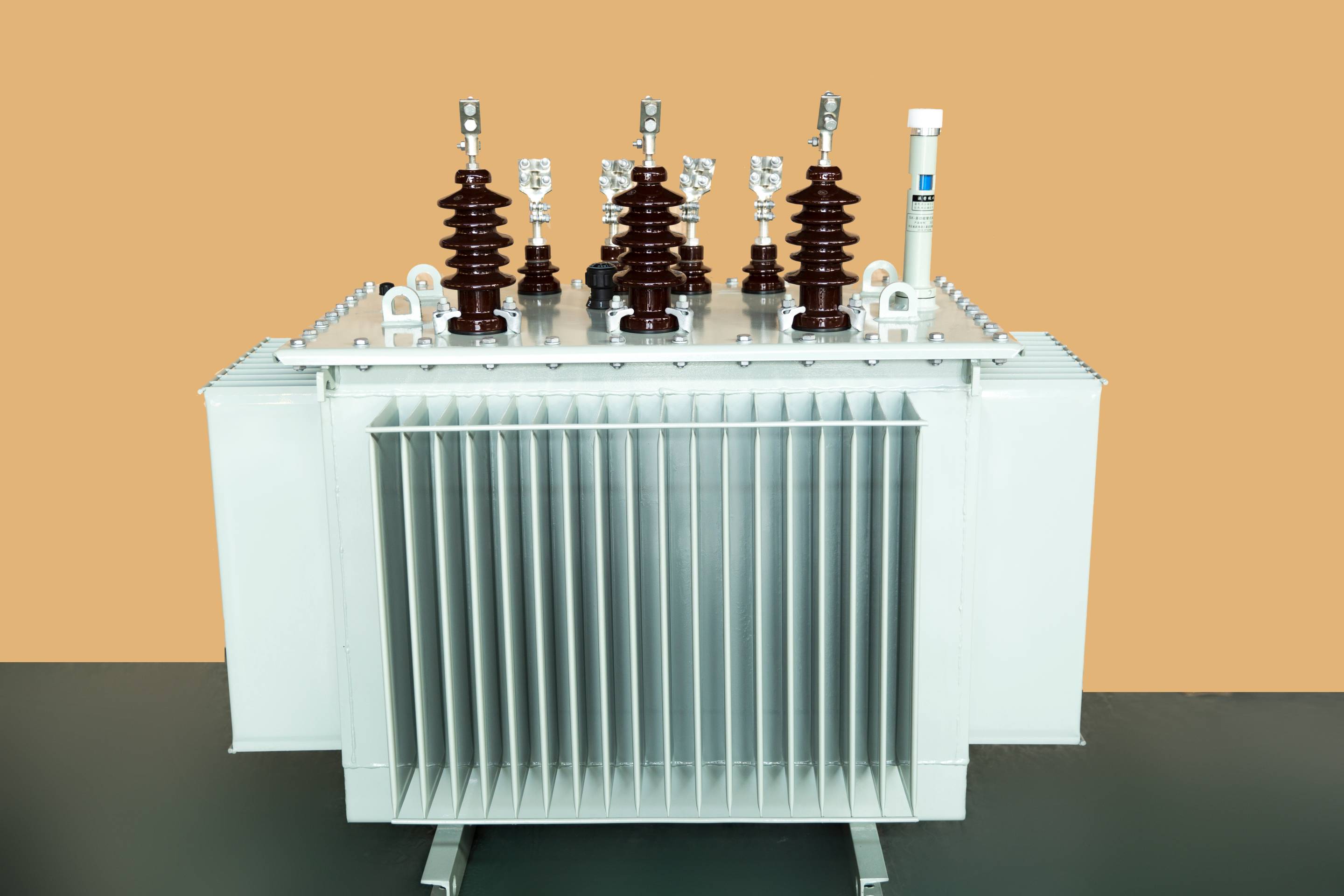

50kVA Three Phase Transformer
Main Features:
High Efficiency and Energy Saving: Utilizing new materials and optimized design, it conforms to the latest energy efficiency standards, reducing energy consumption and operational costs.
Environmental Protection and Safety: High-quality insulating oil is used, providing excellent insulation properties and heat dissipation; additionally, it is equipped with an explosion-proof device to ensure safe operation.
Safety and Stability: Possesses good overload capacity and short-circuit resistance, ensuring long-term stable operation.
Low Noise: The structure of the core and windings has been optimized, effectively reducing the noise level during operation.
Easy Installation: Small in size and light in weight, making it convenient for transportation and installation.
The S20-50 is an oil-immersed transformer with a rated capacity of 50kVA, designed to provide reliable and efficient power distribution. It belongs to the S20 series, a new generation of high-efficiency and energy-saving transformers, meeting the latest energy efficiency standards and ensuring long-term operational reliability.
Main Features
High Efficiency and Energy Saving: The S20-50 transformer incorporates advanced materials and an optimized design, aligning with the latest energy efficiency standards. This reduces energy consumption, which helps lower operational costs and improve the overall cost-effectiveness of power distribution.
Environmental Protection and Safety: The transformer uses high-quality insulating oil that offers superior insulation properties and effective heat dissipation. Additionally, it is equipped with an explosion-proof device for enhanced safety during operation, making it a reliable choice for sensitive environments.
Safety and Stability: The S20-50 is designed with excellent overload capacity and short-circuit resistance, ensuring stable and safe operation under various load conditions. This robustness guarantees a long lifespan and reliable performance.
Low Noise: Thanks to an optimized design for the core and windings, the transformer operates with significantly reduced noise levels. This makes it suitable for environments where noise reduction is important, such as residential or office areas.
Easy Installation: The S20-50 is compact and lightweight, making it easy to transport and install. Its space-efficient design is ideal for locations with limited installation space.
Technical Parameters
Rated Capacity: 50kVA
Voltage Levels: Typically 10kV/0.4kV or other custom configurations
Cooling Method: Oil-immersed self-cooling
Connection Group: Yyn0 or Dyn11
Insulation Level: Class B or higher
Protection Level: IP20 or higher
Application Scenarios
The S20-50 transformer is versatile and suitable for a wide range of applications, including:
Small Industrial Sector: Ideal for small factories, workshops, and manufacturing facilities that require a stable and reliable power supply for equipment and operations.
Commercial Sector: Perfect for use in small shopping malls, office buildings, hotels, and retail spaces, where energy-efficient power distribution is essential for smooth business operations.
Civil Sector: The transformer is well-suited for residential areas, schools, hospitals, and other public buildings, ensuring reliable power for everyday needs.
Special Environments: It is also suitable for specialized locations such as communication base stations, research institutions, and other sites where high-quality power supply is required.
In summary, the S20-50 oil-immersed transformer is an efficient, safe, and reliable power distribution solution for various applications. Its compact design, energy-saving capabilities, and strong safety features make it a versatile and cost-effective choice for small industrial, commercial, and civil sectors. It ensures stable operation in a range of environments while minimizing environmental impact and operational costs.
