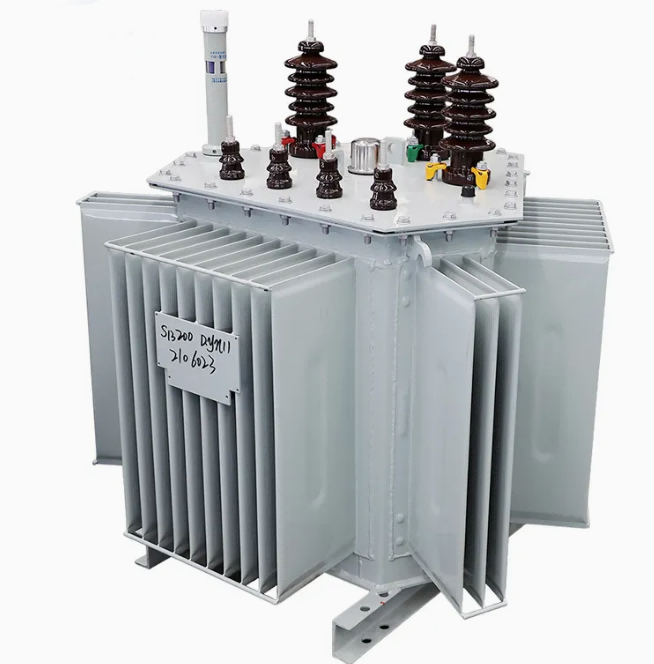

315KVA Amorphous Core Transformer
The SBH25-M.RL-315 amorphous alloy transformer is a high-performance, energy-efficient, environmentally friendly, and safe power equipment, widely used in industrial, commercial, civil, and special environment fields. The transformer uses advanced amorphous alloy materials as the core, featuring significant low loss, low noise, high safety, and compactness.
Main Features:
This transformer features amorphous alloy materials that significantly reduce no-load and load losses, improving energy efficiency. The low-loss design lowers both hysteresis and eddy current losses, resulting in enhanced energy savings, particularly compared to traditional silicon steel transformers. Over time, this design helps reduce electricity consumption.
For safety and environmental protection, the transformer utilizes high-quality insulating oil or dry-type designs that offer excellent insulation and heat dissipation. It also includes an explosion-proof device to ensure safe operation under abnormal conditions. The amorphous alloy materials are non-toxic, eco-friendly, and comply with environmental protection standards.

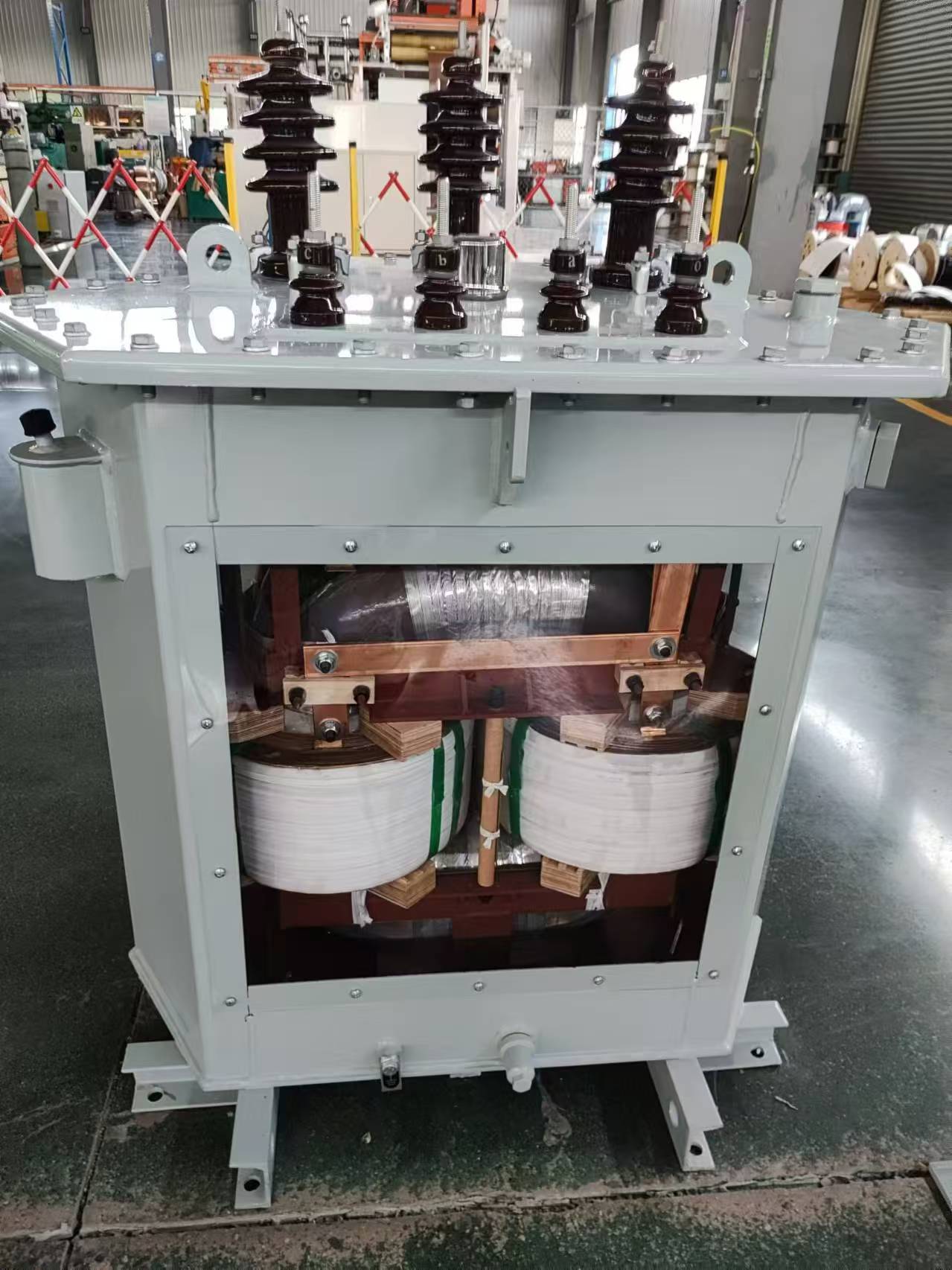

The core and winding structure are optimized to minimize noise levels during operation, making it suitable for environments where noise reduction is essential. Additionally, the transformer boasts high mechanical strength, enabling it to withstand large short-circuit current shocks, ensuring the stability and reliability of the system. The compact and lightweight design makes transportation and installation more convenient compared to traditional silicon steel core transformers.
Technical Specifications (Example):
Rated Capacity: 100kVA
Voltage Level: 10kV/0.4kV or other available configurations
Cooling Method: Oil-immersed self-cooling or dry-type air self-cooling
Connection Group: Yyn0 or Dyn11
Insulation Level: Class B or higher
Protection Level: IP20 or higher
No-Load and Load Losses: Both minimized, with specific details available in the technical documentation.
Application Areas:
This transformer is suitable for a wide range of applications, including factories, production workshops, shopping malls, office buildings, hotels, residential areas, schools, hospitals, communication base stations, and research institutions. It provides energy-efficient and reliable power for both industrial and commercial sectors, while also meeting the needs of residential and public buildings, and specialized environments that demand high power quality.
