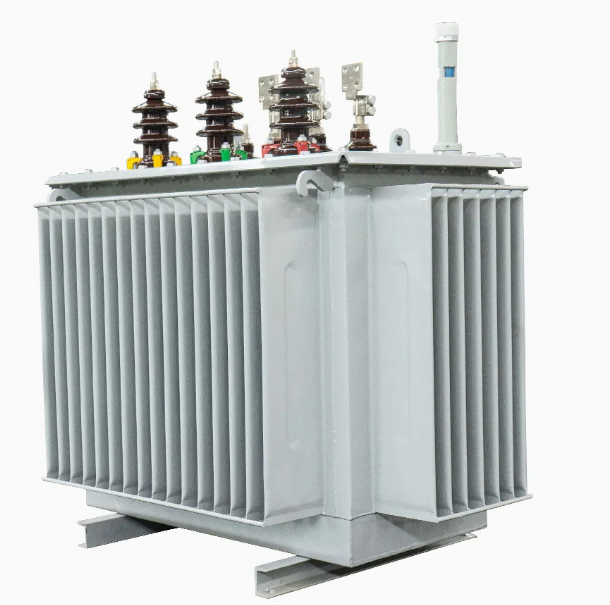

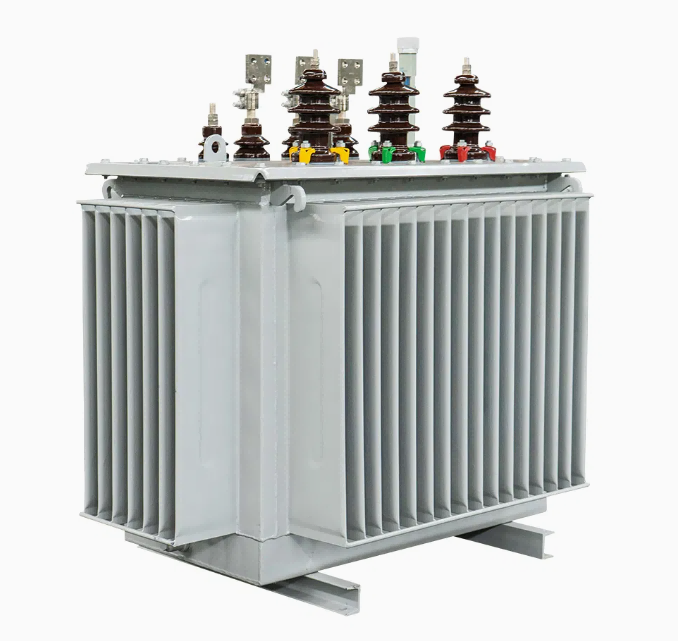

200kVA Oil-Immersed Transformer

The S22-M-200 is a high-performance oil-immersed transformer with a rated capacity of 200kVA, designed to meet the growing demands for efficient and reliable power distribution. It is part of the S22 series, a new generation of energy-efficient transformers that offer superior performance while adhering to the latest energy efficiency standards. This model is built to serve a variety of applications, providing long-term reliability and significant energy savings.

Main Features:

High Efficiency and Energy Saving: The S22-M-200 utilizes cutting-edge materials and a refined design to minimize energy losses, both under no-load and load conditions. This results in significantly improved energy efficiency, which lowers overall energy consumption and reduces operational costs. As a result, it is an ideal choice for facilities looking to reduce their environmental footprint and achieve energy savings.

Environmental Protection and Safety: The transformer uses high-quality insulating oil, which ensures superior insulation and effective heat dissipation during operation. This oil not only maintains the optimal performance of the transformer but also contributes to the environmental safety of the installation. Additionally, the transformer is equipped with an explosion-proof device, providing an extra layer of safety to ensure secure operation even in the event of abnormal conditions.

Safety and Stability: Designed for continuous, high-performance operation, the S22-M-200 is equipped with excellent overload and short-circuit resistance capabilities. This ensures that the transformer can handle sudden surges in power demand and protect critical equipment from potential damage. With robust construction and stable operation, it guarantees a reliable and secure power supply for extended periods.

Low Noise: The S22-M-200 is engineered with an optimized core and winding structure that significantly reduces noise during operation. This makes it a suitable choice for installation in environments where noise levels are a concern, such as residential areas, hospitals, or office buildings, where a quiet operation is essential to maintain a comfortable environment.

Easy Installation: The S22-M-200 is designed with ease of installation in mind. Its moderate size and relatively lightweight construction make it ideal for quick and efficient transport and setup. This compact design allows it to fit seamlessly into a wide range of locations, whether for new installations or for upgrading existing power distribution systems.

Technical Parameters (Example):

Rated Capacity: 200kVA

Voltage Levels: Typically 10kV/0.4kV or other customer-specific configurations

Cooling Method: Oil-immersed self-cooling

Connection Group: Yyn0 or Dyn11

Insulation Class: Class B or higher

Protection Class: IP20 or higher

Application Scenarios:
The S22-M-200 transformer is versatile and can be used in a wide array of settings:

Small and Medium Industrial Fields: It is ideal for small and medium-sized factories, workshops, and assembly lines that require a stable and reliable power supply for day-to-day operations. Whether powering machinery, equipment, or production lines, the S22-M-200 provides consistent performance.

Commercial Fields: This transformer is also well-suited for commercial applications such as shopping malls, office buildings, hotels, and other commercial establishments that need reliable power to support business operations. It ensures that businesses can operate smoothly without interruptions caused by power failures.

Civil Fields: The S22-M-200 is perfect for residential areas, schools, hospitals, and other public buildings, providing the necessary power to keep essential services running. Its reliable performance ensures a stable power supply for these critical facilities, maintaining their operations 24/7.

Special Environments: With its high-quality construction and specialized features, this transformer is also ideal for environments requiring high power quality, such as communication base stations, research institutions, and data centers. These environments demand a transformer that can provide steady and uninterrupted power, and the S22-M-200 is well-equipped to meet those requirements.
