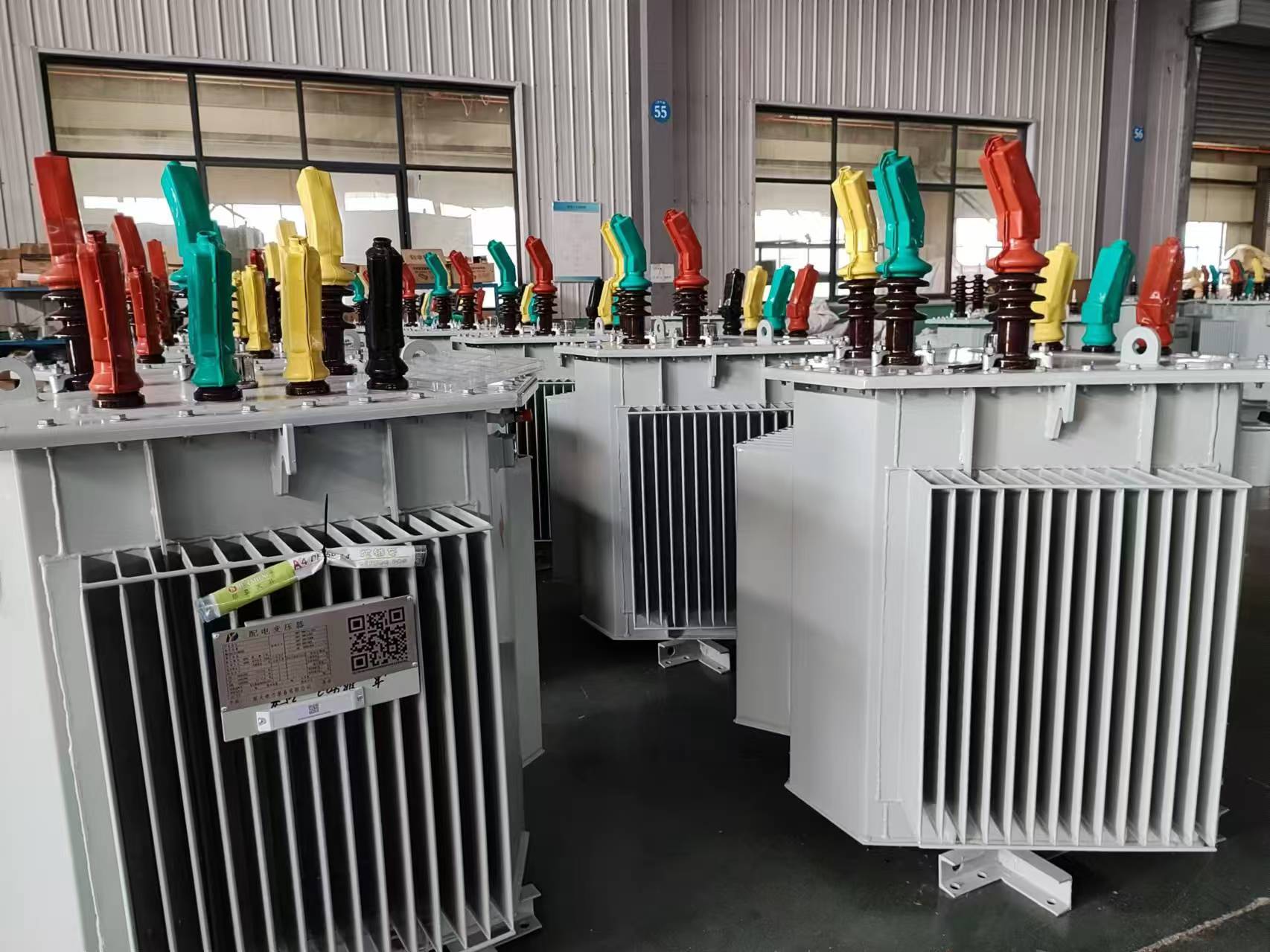

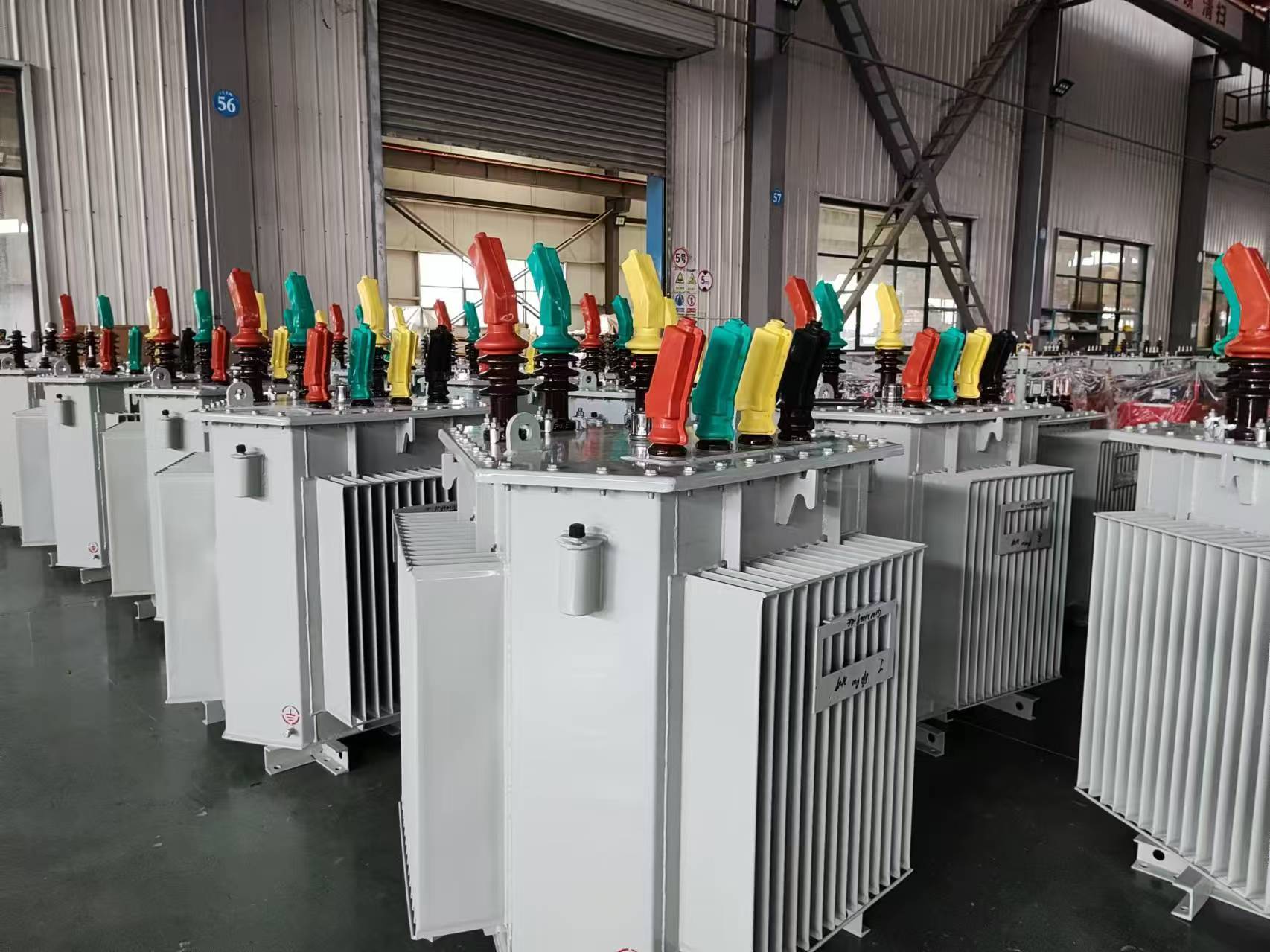

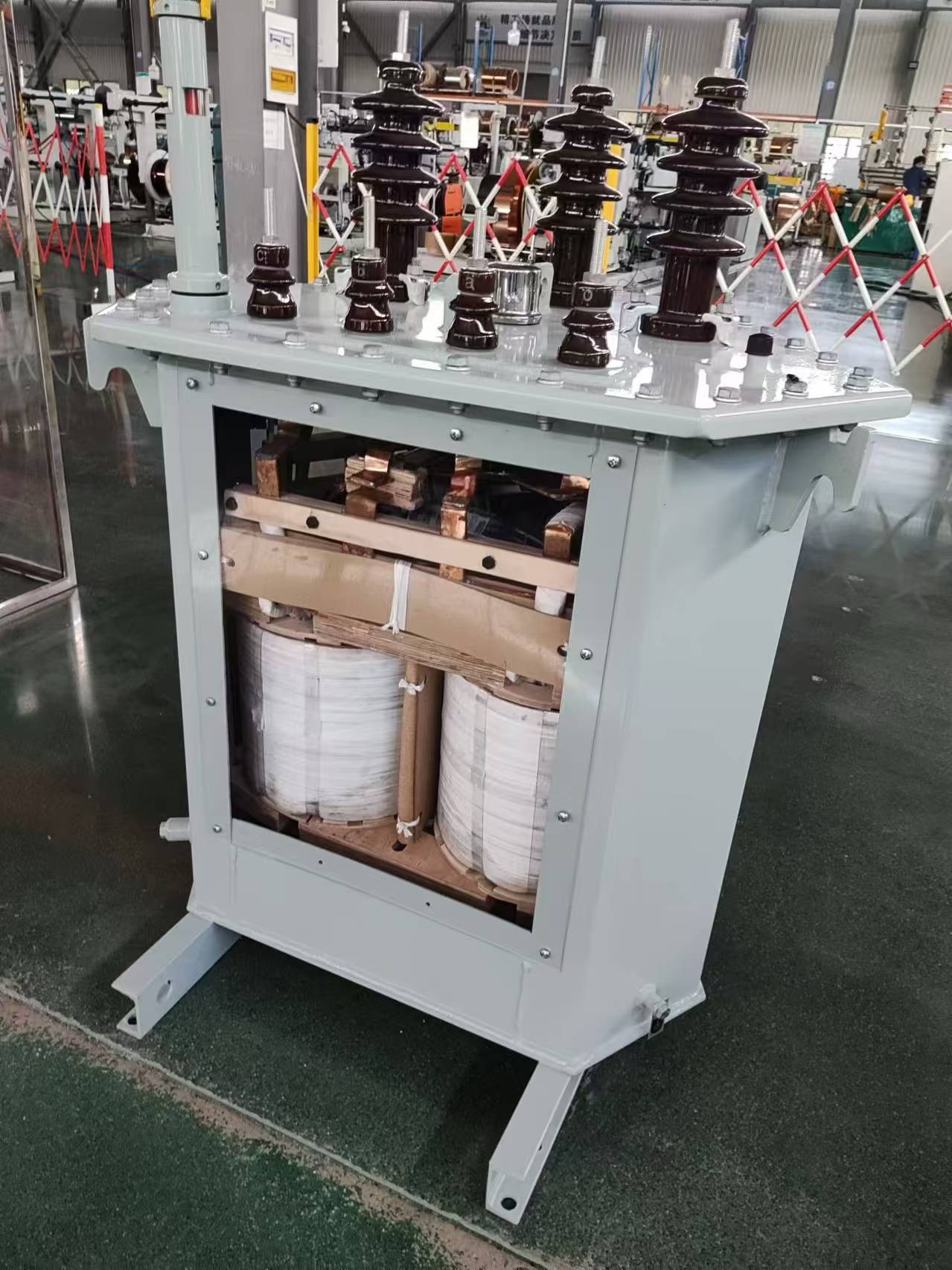

1600KVA Amorphous Transformer
SBH25-M.RL-1600 is a high-efficiency energy-saving power transformer that uses amorphous alloy material as its core. Amorphous alloy (also known as metallic glass) has a special microstructure that results in lower hysteresis losses and eddy current losses compared to traditional silicon steel sheets, allowing this type of transformer to achieve higher efficiency during operation.
Technical Parameters
Capacity: 1600 kVA (kilovolt-amperes), indicating the transformer's maximum output power.
Voltage Levels: Specific values are not provided, but typically include two voltage values for the high-voltage and low-voltage sides. For example, it could be a configuration like 10/0.4 kV, where 10 kV is the rated high-voltage side and 0.4 kV is the rated low-voltage side.
Connection Group: Such as Dyn11 or Yyn0, specifying the electrical connection method and phase relationship between the transformer windings.
No-load Loss: Relatively low, thanks to the use of amorphous alloy material.
Load Loss: Also relatively low.
Insulation Class: Depending on the actual application requirements, common classes include F, H, etc.
Cooling Method: Natural air cooling (AN), forced air cooling (AF), or other forms.
Applications
Industrial Power Supply: Suitable for enterprises or factories requiring large-capacity stable power supply.
Urban Power Grid Construction: Used to improve the energy efficiency level of urban distribution systems and reduce energy loss.
Rural Power Grid Transformation: Helps improve the quality of power supply in remote or rural areas.
Special Occasions: For example, in places with high environmental noise requirements or limited space, due to the small size and low noise of amorphous alloy transformers.
