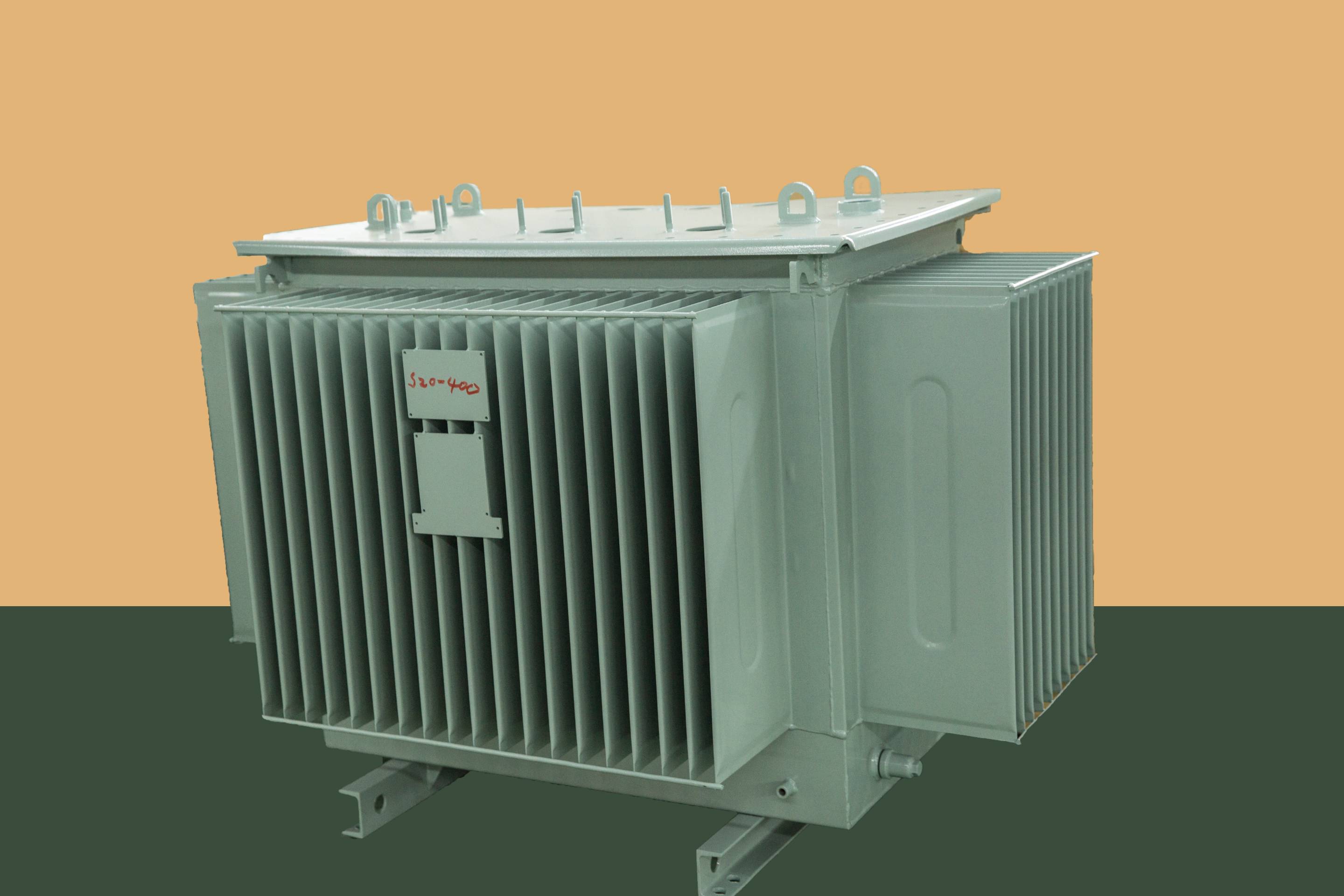

100kVA Three Phase Transformer
Main Features:
High Efficiency and Energy Saving: Utilizing new materials and optimized design, it conforms to the latest energy efficiency standards, reducing energy consumption and operational costs.
Environmental Protection and Safety: High-quality insulating oil is used, providing excellent insulation properties and heat dissipation; additionally, it is equipped with an explosion-proof device to ensure safe operation.
Safety and Stability: Possesses good overload capacity and short-circuit resistance, ensuring long-term stable operation.
Low Noise: The structure of the core and windings has been optimized, effectively reducing the noise level during operation.
Easy Installation: Small in size and light in weight, making it convenient for transportation and installation.
The S20-100 is an oil-immersed transformer with a rated capacity of 100kVA, designed for high-efficiency and energy-saving power distribution. As part of the S20 series, it represents the latest generation of transformers that offer superior reliability and performance while meeting the latest energy efficiency standards.
Main Features
High Efficiency and Energy Saving: The S20-100 uses advanced materials and an optimized design, ensuring that it meets the most up-to-date energy efficiency standards. This reduces both energy consumption and operational costs, making it an eco-friendly and cost-effective solution for various power distribution needs.
Environmental Protection and Safety: The transformer features high-quality insulating oil, which provides excellent insulation properties and efficient heat dissipation. Additionally, it comes with an explosion-proof device, ensuring safe operation even in hazardous conditions, providing peace of mind in critical applications.
Safety and Stability: Designed with strong overload capacity and short-circuit resistance, the S20-100 ensures stable operation over the long term. Its rugged construction makes it highly reliable in varying load conditions, ensuring uninterrupted power supply.
Low Noise: The transformer is optimized with an advanced core and winding structure that effectively reduces noise levels during operation. This makes it an ideal choice for environments where low noise is essential, such as residential areas, offices, or educational institutions.
Easy Installation: The compact and lightweight design of the S20-100 allows for easy transportation and installation. Its space-saving features make it versatile for different types of installations, even in locations with limited space.
Technical Parameters
Rated Capacity: 100kVA
Voltage Levels: Typically 10kV/0.4kV or other custom configurations
Cooling Method: Oil-immersed self-cooling
Connection Group: Yyn0 or Dyn11
Insulation Level: Class B or higher
Protection Level: IP20 or higher
Application Scenarios
The S20-100 transformer is versatile and well-suited for a wide range of applications, including:
Small Industrial Sector: Perfect for small factories, workshops, and light manufacturing plants that require a reliable and stable power supply to run machinery and operations smoothly.
Commercial Sector: Ideal for small shopping malls, office buildings, hotels, and retail outlets that need a dependable and energy-efficient power distribution system to support daily operations.
Civil Sector: Suitable for residential areas, schools, hospitals, and other public buildings, providing reliable power that ensures smooth operations in everyday life.
Special Environments: Well-suited for communication base stations, research institutions, and other facilities where high-quality power is required to ensure critical operations are not interrupted.
In summary, the S20-100 oil-immersed transformer provides an efficient, safe, and reliable solution for power distribution across various sectors. With its low noise, energy-saving features, and robust safety mechanisms, it is an excellent choice for industrial, commercial, and civil applications where stable and reliable power supply is crucial.
