Single PhaseD13 150kVA

Energy-efficient rolled core structure;

Strong overload capacity and high reliability;

Maintenance-friendly

Contact Now E-Mail Telephone WhatsApp

Product Details

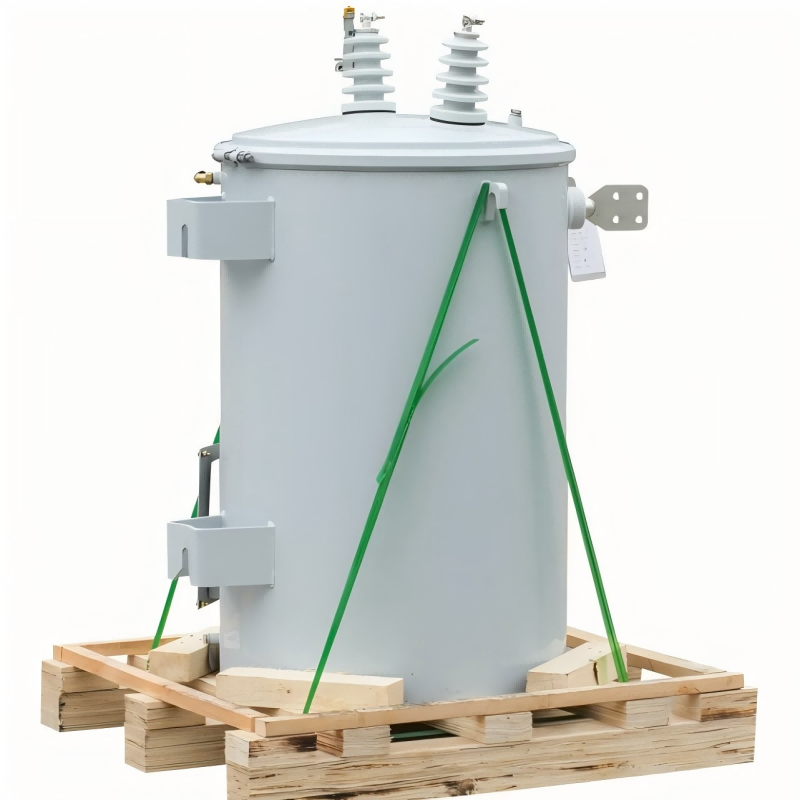

Single Phase D11/D13 150kVA 10 0.23 Oil-Immersed

Compact and Cost-Effective: Designed specifically for pole-mounted installations, this transformer minimizes infrastructure investment, making it ideal for rural areas, remote locations, and scattered villages with limited power infrastructure.

Primary Uses: It is well-suited for agricultural power, lighting applications, railway systems, and rural regions with dispersed power distribution.

Design Benefits: Featuring an energy-efficient rolled core, the transformer offers strong overload capacity and exceptional reliability. Additionally, its user-friendly design ensures that maintenance is simple and cost-effective, reducing long-term service needs.

le Mounted Distribution Tansformer

Rated Power (KVA)	High Voltage (V)	Low Voltage (V)	Loss (w)		Dimension(mm)			Weight(Kg)
Rated Power (KVA)	High Voltage (V)	Low Voltage (V)	No-load Loss(W)	Load Loss(W)	W	D	H	Oil Weight	Total Weigh
5	34500 19920 13800 7957 13200 7620 12470 7200 or others		19 36 50 80 105 135 190 210 350	75 120 195 290 360 500 650 850 1410	465	485	855	15	92
10					500	525	885	22	150
15		120-240			520	565	905	30	210
25		240-480			560	590	935	45	258
37.5		347			610	625	935	50	340
50		600			635	675	1035	62	395
75					745	840	1035	88	480
100					770	965	1135	94	530

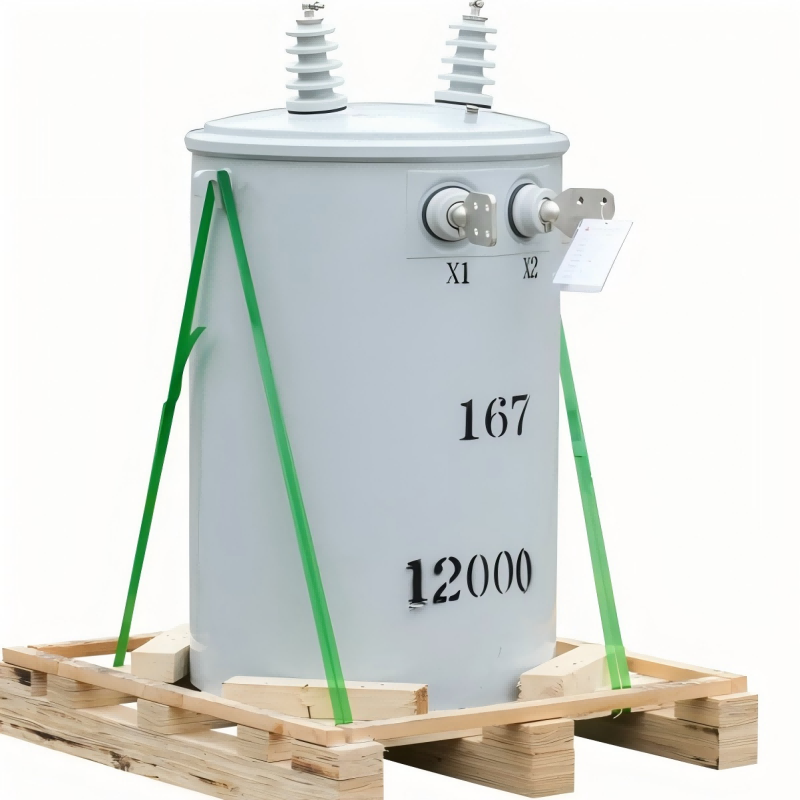

167					795	890	1335	138	680
