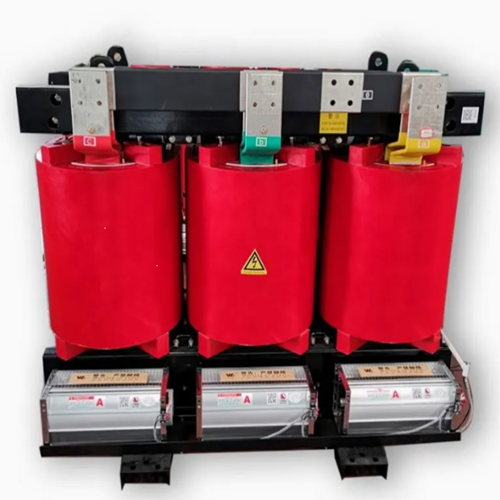

80kVA Dry Type Transformer
Product Features:
Energy-saving Effectiveness: Utilizes advanced production technology, complete design drawings and technical documents, advanced production equipment, stable processing technology, and comprehensive measurement methods.
Reliable Operation: Performance indicators meet various standards, and customer usage has proven its reliability, reaching the national advanced level.
Maintenance-free: Low loss, low noise, obvious energy-saving effects, and maintenance-free.
Safe, Fireproof, Non-polluting: Can be directly operated at the load center, suitable for important or special environments such as high-rise buildings, commercial centers, airports, tunnels, chemical plants, nuclear power plants, etc.
Compact Size, Light Weight, Less Space Occupation, Easy Installation: Adapts to various installation environments and reduces space occupancy.
The SCB14-80 is a highly efficient three-phase dry-type power transformer with an encapsulated structure cast in epoxy resin. This transformer utilizes advanced foil winding technology on the high-voltage side, ensuring robust performance and energy efficiency. With a rated capacity of 50kVA and operating at voltage levels of 10kV/0.4kV, the SCB14-50 is designed to meet the power requirements of various commercial, industrial, and residential applications while offering enhanced safety and reliability.
Model Meaning:
S: Denotes a three-phase power transformer.
C: Refers to an encapsulated dry-type transformer, with the winding cast in epoxy resin.
B: Indicates the use of foil winding technology on the high-voltage side, providing better thermal performance and efficiency.
14: Represents the energy-saving performance level of the transformer, with higher numbers indicating reduced losses and higher energy efficiency.
50: Represents the rated capacity of the transformer, which is 50kVA.
Technical Parameters:
Rated Capacity: 50kVA.
Rated Voltage: High-voltage side: 10kV, Low-voltage side: 0.4kV.
Rated Current: High-voltage side: Approx. 2.3A, Low-voltage side: Approx. 114A.
Connection Group Number: Dyn11. This connection type helps reduce harmonic currents and improves the stability of the power system, ensuring optimal performance.
Insulation Thermal Class: Class F, providing enhanced insulation durability.
Winding Temperature Rise Limit: 100K, ensuring efficient heat dissipation for the transformer to prevent overheating.
Partial Discharge Quantity: Less than 5pc, ensuring that the transformer operates with minimal electrical discharge and maintains long-term reliability.
Short Circuit Impedance: 4%, ensuring effective control of short-circuit currents and minimizing the impact on the transformer during fault conditions.
Frequency: 50Hz, standard for most power distribution systems.
Application Scenarios:
The SCB14-50 dry-type transformer is ideal for a wide range of applications in locations where fire safety and efficiency are critical. It is especially well-suited for:
Multi-story buildings, where space constraints and fire safety concerns are paramount.
Airports and stations, providing a reliable power supply in high-traffic, high-demand environments.
Ports and power plants, where power stability is essential for continuous operations.
Distribution substations, offering efficient voltage transformation in urban and industrial settings.
Special environments with heightened fire prevention requirements, such as chemical plants, nuclear power plants, and other high-risk industrial applications.
Product Features:
Energy-saving Effectiveness: The SCB14-50 employs cutting-edge production technology, advanced equipment, and detailed design specifications to ensure maximum energy efficiency. The result is a transformer that reduces operational costs while providing reliable service.
Reliable Operation: Designed to meet rigorous performance standards, the SCB14-50 has been tested and proven to offer high reliability. It meets national advanced-level standards, ensuring dependable operation in even the most demanding environments.
Maintenance-free: This transformer is built for low maintenance, with low loss, reduced noise, and significant energy-saving effects. The maintenance-free design allows for reduced operational costs and fewer service interruptions.
Safe, Fireproof, Non-polluting: The dry-type construction of the SCB14-50 makes it suitable for operation in fire-sensitive environments. It is ideal for installation in commercial centers, airports, high-rise buildings, tunnels, and other areas where fire safety is critical. Additionally, its non-polluting nature makes it an environmentally friendly choice.
Compact Size, Light Weight, and Easy Installation: The SCB14-50 is designed for ease of installation in various environments. Its compact size and lightweight structure reduce the space required for installation, making it ideal for locations where space is limited. The transformer’s easy installation process also minimizes downtime and installation costs.
In summary, the SCB14-50 dry-type transformer offers exceptional performance, safety, and efficiency for a wide range of applications. Its encapsulated, fireproof design, combined with advanced technology and a focus on energy efficiency, makes it a reliable and environmentally friendly solution for commercial, industrial, and residential power needs. Whether used in high-rise buildings, chemical plants, or power plants, the SCB14-50 ensures reliable, long-term operation with minimal maintenance and operational costs.
