50kVA Dry Type Transformer
Product Features:
Energy-saving Effectiveness: Utilizes advanced production technology, complete design drawings and technical documents, advanced production equipment, stable processing technology, and comprehensive measurement methods.
Reliable Operation: Performance indicators meet various standards, and customer usage has proven its reliability, reaching the national advanced level.
Maintenance-free: Low loss, low noise, obvious energy-saving effects, and maintenance-free.
Safe, Fireproof, Non-polluting: Can be directly operated at the load center, suitable for important or special environments such as high-rise buildings, commercial centers, airports, tunnels, chemical plants, nuclear power plants, etc.
Compact Size, Light Weight, Less Space Occupation, Easy Installation: Adapts to various installation environments and reduces space occupancy.

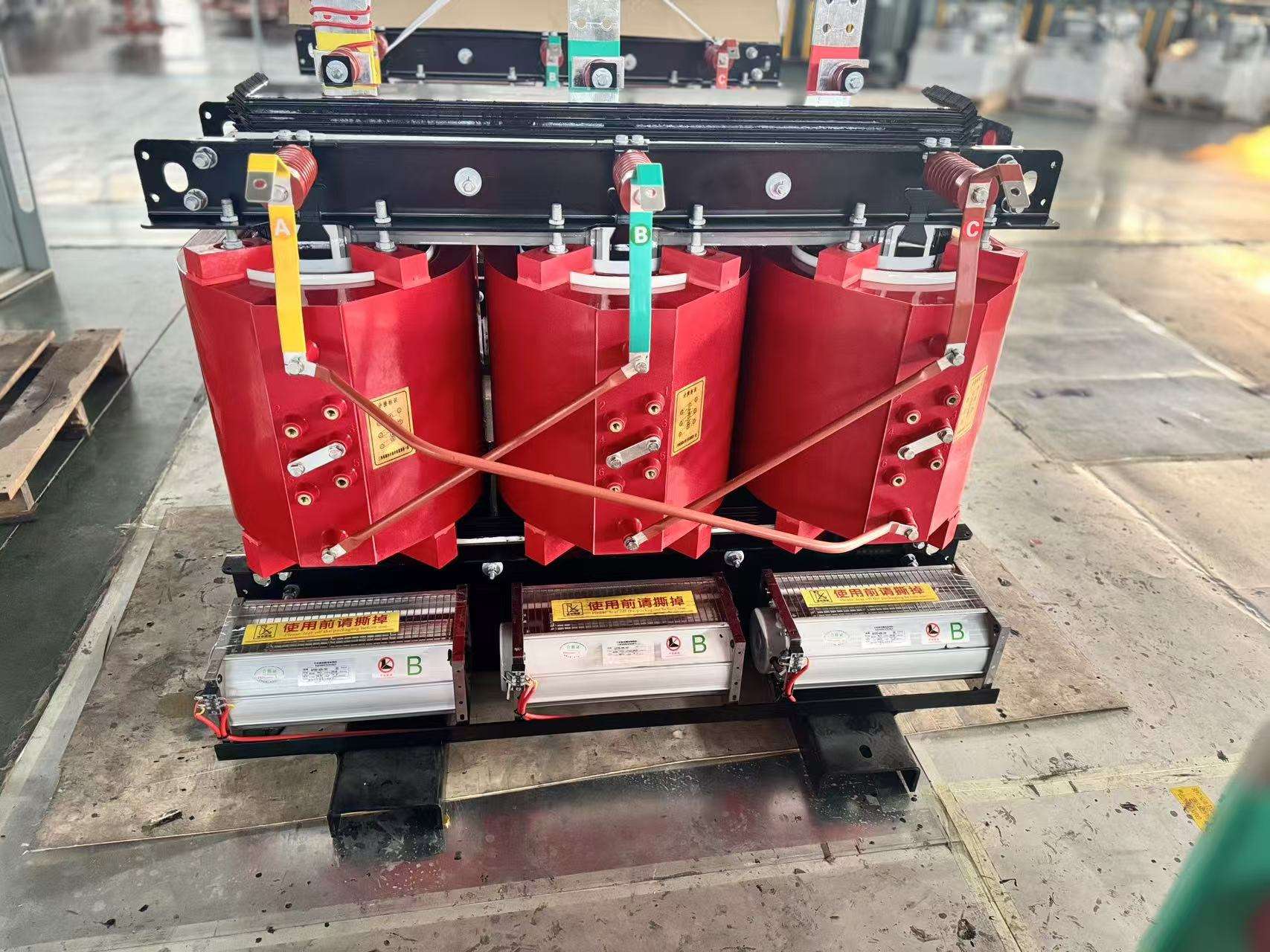

The SCB14-50 is a three-phase dry-type power transformer with an encapsulated structure cast in epoxy resin. The high-voltage side employs foil winding technology, with a rated capacity of 50kVA and voltage levels of 10kV/0.4kV. Below are the detailed specifications of the SCB14-50 dry-type transformer:
Model Meaning:
S: Indicates a three-phase power transformer.
C: Indicates an encapsulated dry-type transformer cast in epoxy resin.
B: Indicates that the high-voltage side uses foil winding technology.
14: Represents the energy-saving performance level of the transformer, with higher numbers indicating lower losses and higher efficiency.
50: Indicates the transformer's rated capacity of 50kVA.
Technical Parameters:
Rated Capacity: 50kVA.
Rated Voltage: High-voltage side 10kV, low-voltage side 0.4kV.
Rated Current: High-voltage side approximately 2.3A, low-voltage side approximately 114A.
Connection Group Number: Dyn11, which helps suppress higher harmonic currents and improve the stability of the power system.
Insulation Thermal Class: Class F.
Winding Temperature Rise Limit: 100K.
Partial Discharge Quantity: Less than 5pc.
Short Circuit Impedance: 4%.
Frequency: 50Hz.
Application Scenarios:
The SCB14-50 dry-type transformer is widely used in multi-story buildings, airports, stations, ports, power plants, distribution substations, and other locations, especially suitable for installation in places with strong fire prevention requirements, such as flammable and explosive environments.
Product Features:
Energy-saving Effectiveness: Utilizes advanced production technology, complete design drawings and technical documents, advanced production equipment, stable processing technology, and comprehensive measurement methods.
Reliable Operation: Performance indicators meet various standards, and customer usage has proven its reliability, reaching the national advanced level.
Maintenance-free: Low loss, low noise, obvious energy-saving effects, and maintenance-free.
Safe, Fireproof, Non-polluting: Can be directly operated at the load center, suitable for important or special environments such as high-rise buildings, commercial centers, airports, tunnels, chemical plants, nuclear power plants, etc.
Compact Size, Light Weight, Less Space Occupation, Easy Installation: Adapts to various installation environments and reduces space occupancy.
