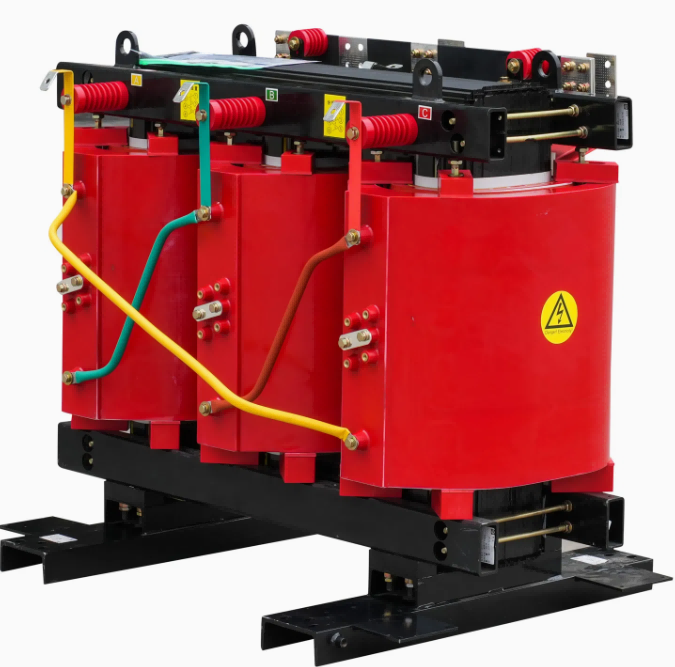

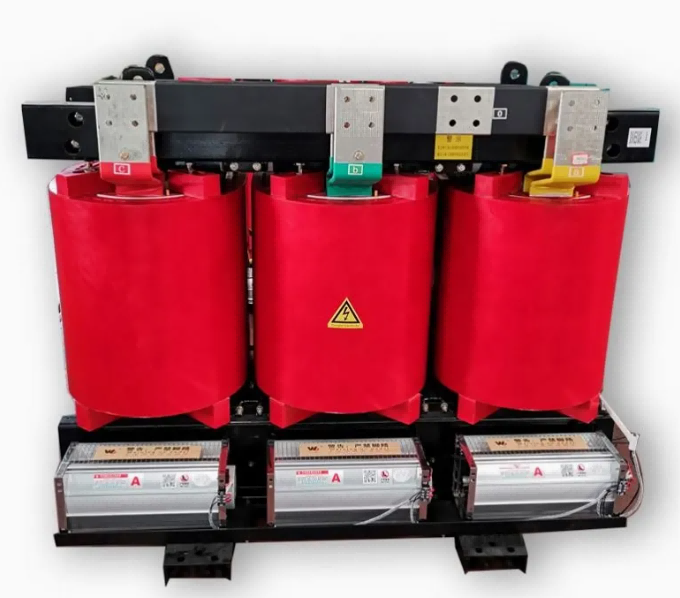

2500KVA High Voltage Dry Type Transformer
SCB14-2500 is a high-efficiency and energy-saving three-phase dry-type power transformer. It features an encapsulated structure with epoxy resin casting and foil-wound technology on the high-voltage side. The rated capacity is 2500kVA, and it is widely used in industrial, commercial, and public facilities, among other sectors.
Technical Parameters
Rated Capacity: 2500kVA
Rated Voltage: High-voltage side 10kV, low-voltage side 0.4kV
Rated Current: High-voltage side approximately 125A, low-voltage side approximately 5982A
Connection Group Number: Dyn11
Insulation Thermal Class: Class F or Class H
Winding Temperature Rise Limit: 100K (Class F) or 125K (Class H)
Partial Discharge Quantity: Less than 5pc
Short Circuit Impedance: 4% to 6%
Frequency: 50Hz

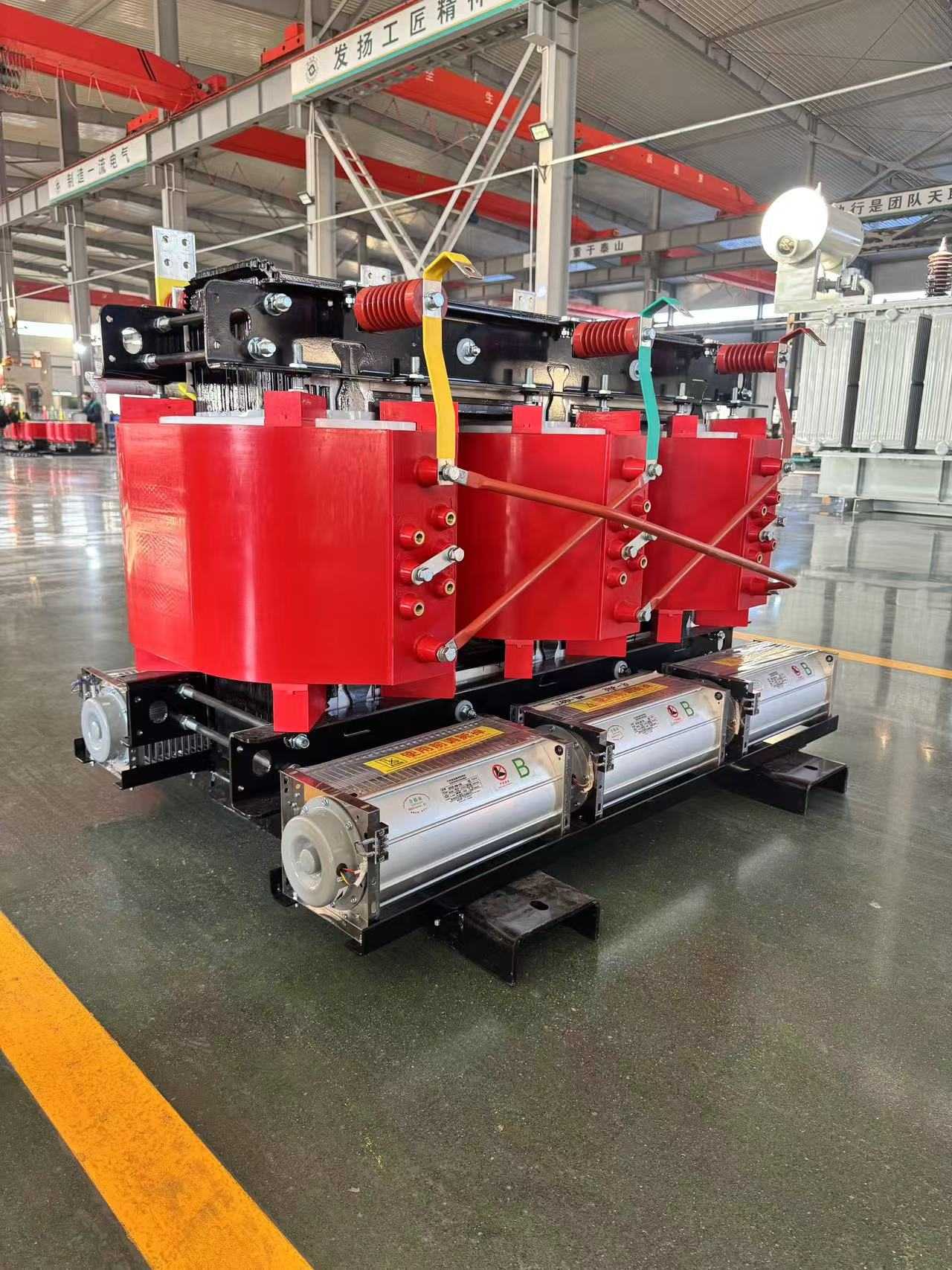

Cooling Method: Natural Air Cooling (AN) or Forced Air Cooling (AF)
Protection Level: IP20 or IP23
Noise Level: Generally not exceeding 55dB
Application Scenarios
The SCB14-2500 dry-type transformer is suitable for industrial areas, commercial facilities, public facilities, and other locations, especially for installation and application in places with strict fire prevention requirements, such as flammable and explosive environments.
IV. Product Features
High Efficiency and Energy Saving: Advanced design technology and high-quality materials ensure high efficiency and low loss.
Safe and Reliable: Possesses good overload capacity and short-circuit resistance, ensuring long-term stable operation.
Small Size, Light Weight: Compared to traditional oil-immersed transformers, dry-type transformers have a more compact design, making them easier to install and transport.
Environmentally Friendly and Non-Polluting: Does not require the use of oil-based cooling media, avoiding potential leakage pollution issues.
Easy Maintenance: Simple structure, easy to maintain, reducing daily maintenance costs.
