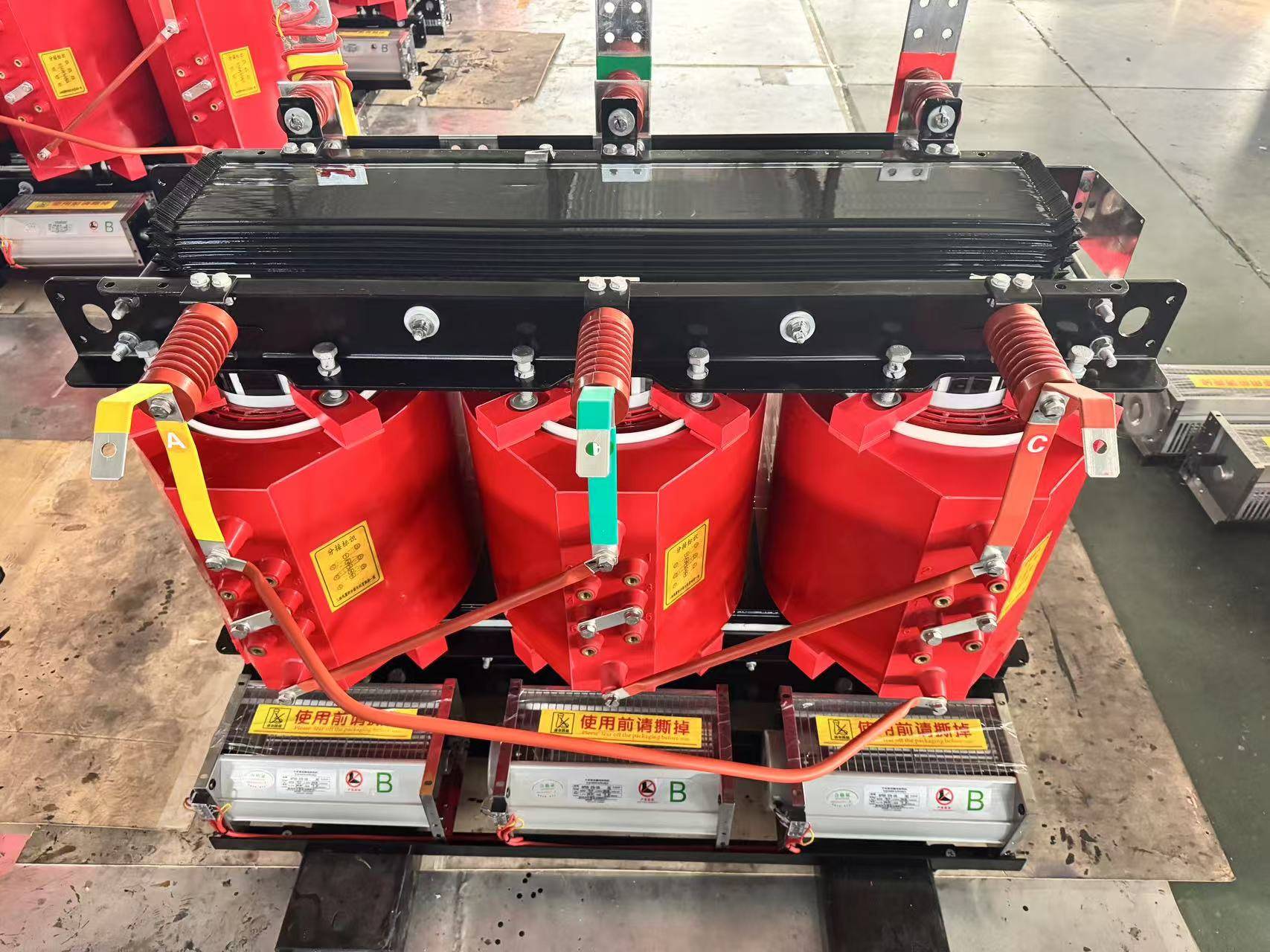

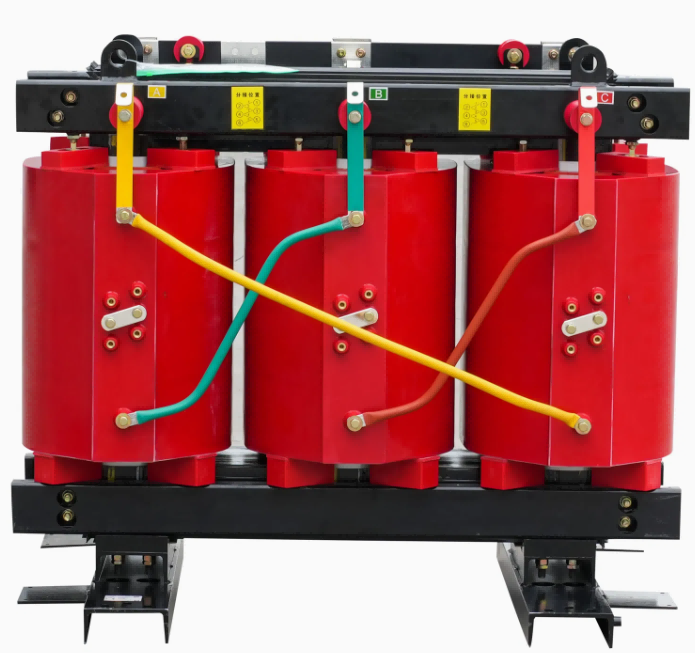

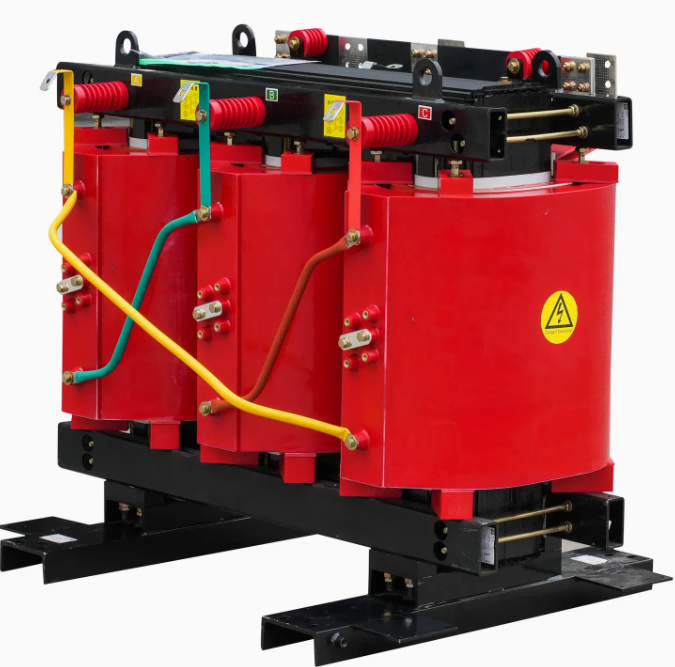

1600KVA Dry type Transformer
SCB18-1600 is a high-efficiency and energy-saving three-phase dry-type power transformer. It features an encapsulated structure cast with epoxy resin and utilizes foil winding technology on the high-voltage side. With a rated capacity of 1600kVA, it is widely used in industrial, commercial, and public facilities, among other sectors.
Technical Specifications
Rated Capacity: 1600kVA
Rated Voltage: High-voltage side 10kV, Low-voltage side 0.4kV
Rated Current: High-voltage side approximately 88.68A, Low-voltage side approximately 3632.5A
Connection Group Number: Dyn11
Insulation Thermal Class: Class F or Class H
Winding Temperature Rise Limit: 100K (Class F) or 125K (Class H)
Partial Discharge Quantity: Less than 5pc
Short Circuit Impedance: 4% to 6%
Frequency: 50Hz
Cooling Method: Natural Air Cooling (AN) or Forced Air Cooling (AF)
Protection Level: IP20 or IP23
Noise Level: Typically not exceeding 55dB
Application Areas
The SCB18-1600 dry-type transformer is ideal for use in industrial zones, commercial buildings, public infrastructure, and other facilities, particularly in environments where fire safety is a priority, such as areas with flammable or explosive risks.
Product Features
High Efficiency and Energy Saving: Cutting-edge design and premium materials ensure exceptional efficiency with minimal energy loss.
Safe and Reliable: Excellent overload handling and short-circuit resistance, guaranteeing consistent and reliable operation over time.
Compact and Lightweight: Compared to traditional oil-filled transformers, dry-type transformers have a more compact form, easing installation and transport.
Eco-Friendly and Non-Toxic: Free from oil-based cooling fluids, reducing the risk of leakage and environmental contamination.
Low Maintenance Needs: Simple, user-friendly design, making regular maintenance easier and more cost-effective.
