125kVA Dry Type Transformer
Product Features:
Energy-saving Effectiveness: Utilizes advanced production technology, complete design drawings and technical documents, advanced production equipment, stable processing technology, and comprehensive measurement methods.
Reliable Operation: Performance indicators meet various standards, and customer usage has proven its reliability, reaching the national advanced level.
Maintenance-free: Low loss, low noise, obvious energy-saving effects, and maintenance-free.
Safe, Fireproof, Non-polluting: Can be directly operated at the load center, suitable for important or special environments such as high-rise buildings, commercial centers, airports, tunnels, chemical plants, nuclear power plants, etc.
Compact Size, Light Weight, Less Space Occupation, Easy Installation: Adapts to various installation environments and reduces space occupancy.

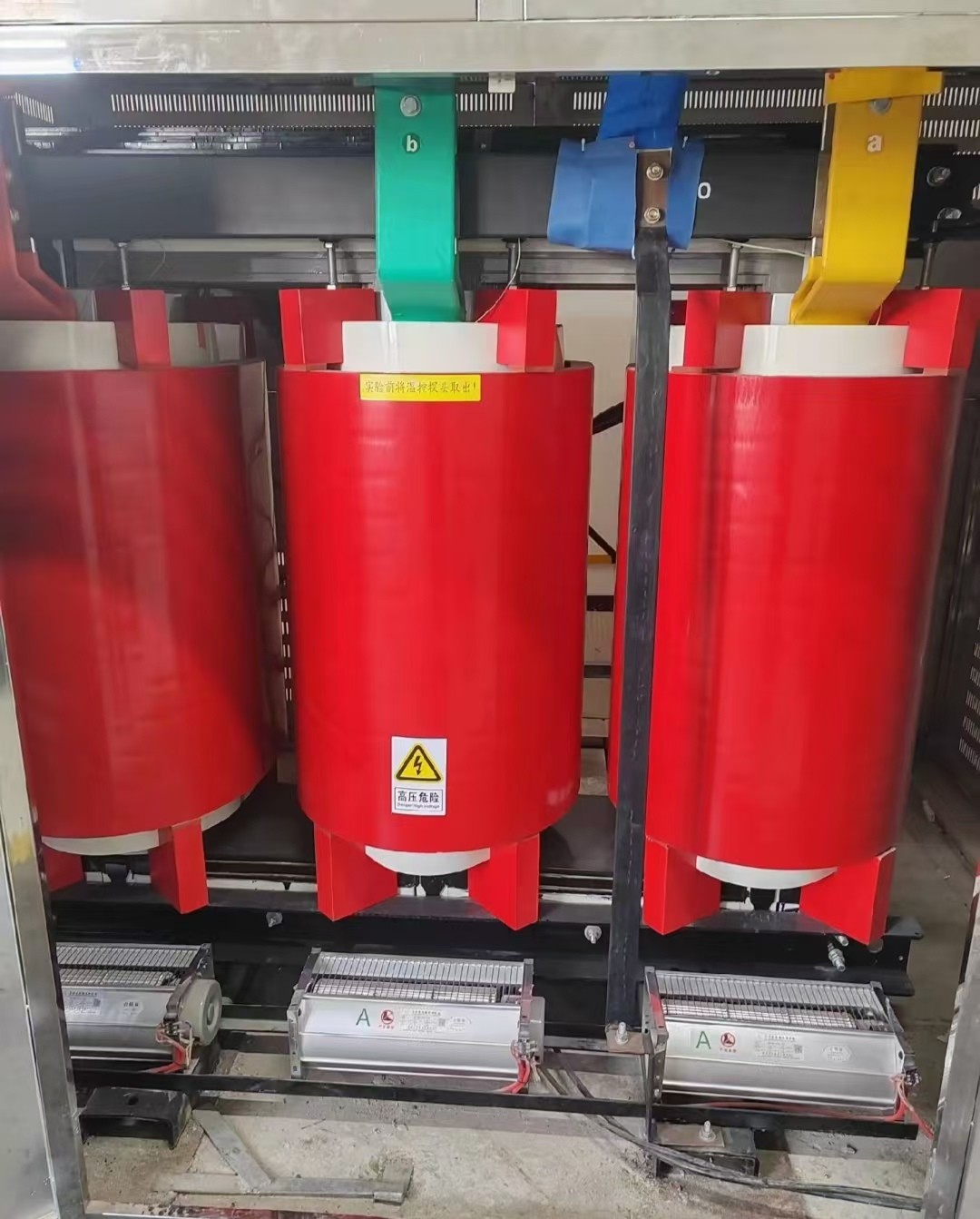

The SCB14-125 is a three-phase dry-type power transformer designed with an encapsulated structure, cast in high-quality epoxy resin. It features foil winding technology on the high-voltage side, ensuring optimal performance and efficiency. With a rated capacity of 125kVA and voltage levels of 10kV/0.4kV, the SCB14-125 transformer is an excellent solution for a variety of applications, especially in environments that require enhanced fire safety.
Model Meaning:
S: Denotes a three-phase power transformer, capable of handling large loads in industrial and commercial settings.
C: Refers to an encapsulated dry-type transformer, with components fully cast in epoxy resin for enhanced insulation, durability, and safety.
B: Indicates the use of foil winding technology on the high-voltage side, which reduces energy losses and increases efficiency.
14: Signifies the energy-saving performance level of the transformer, with higher numbers reflecting lower losses and greater efficiency.
125: Represents the transformer's rated capacity of 125kVA, suitable for medium-sized applications requiring substantial power.
Technical Parameters:
Rated Capacity: 125kVA.
Rated Voltage: High-voltage side: 10kV, Low-voltage side: 0.4kV.
Rated Current: High-voltage side: Approximately 7.2A, Low-voltage side: Approximately 180A.
Connection Group Number: Dyn11, which reduces higher harmonic currents and enhances system stability.
Insulation Thermal Class: Class F, allowing the transformer to operate in high-temperature environments without compromising performance.
Winding Temperature Rise Limit: 100K, ensuring effective thermal management and preventing overheating.
Partial Discharge Quantity: Less than 5pc, ensuring minimal electrical discharge and maintaining high insulation integrity.
Short Circuit Impedance: 4%, offering protection during faults and preventing potential damage to the system.
Frequency: 50Hz, compatible with standard industrial power systems.
Application Scenarios:
The SCB14-125 dry-type transformer is suitable for a wide range of applications, including:
Multi-story Buildings: Perfect for use in high-rise buildings where fire safety, compact design, and efficient power distribution are critical.
Airports and Stations: Provides reliable power for airports, railway stations, and public transportation hubs.
Ports and Power Plants: Ideal for use in ports and power plants that require consistent, high-efficiency power delivery.
Distribution Substations: Serves as a dependable step-down transformer in electrical distribution systems, ensuring stable power supply to various facilities.
Flammable and Explosive Environments: The dry-type, fireproof design makes it especially well-suited for hazardous environments such as chemical plants, mining operations, and areas with high fire risk.
Product Features:
Energy-saving Effectiveness: The SCB14-125 incorporates advanced manufacturing techniques, high-quality materials, and efficient design principles. These factors combine to ensure minimal energy losses, reducing operational costs while maximizing performance.
Reliable Operation: Designed to meet national and international standards, the SCB14-125 transformer delivers reliable performance even in demanding conditions. Customer feedback confirms its ability to operate effectively, achieving long-term, trouble-free use.
Maintenance-free Design: With its low loss, low noise operation, the SCB14-125 requires minimal maintenance. Its energy-efficient design provides significant savings over its service life, while its low-noise operation improves the working environment.
Safe, Fireproof, Non-polluting: This transformer is designed to meet the highest safety standards. It can be installed directly at the load center in critical environments such as high-rise buildings, commercial centers, airports, and hazardous industrial facilities. Its fireproof, non-polluting construction ensures it meets strict safety regulations in sensitive areas.
Compact Size, Light Weight, and Easy Installation: The SCB14-125 is designed to be lightweight and space-efficient, making it easy to transport and install in confined spaces. Its compact size reduces the installation footprint, and its ease of installation saves time and costs during the setup phase.
In summary, the SCB14-125 dry-type transformer offers exceptional performance, safety, and energy efficiency. Its encapsulated design, foil winding technology, and energy-saving features make it ideal for demanding environments where reliability and fire safety are paramount. Whether used in high-rise buildings, airports, power plants, or other critical infrastructure, the SCB14-125 ensures safe, efficient, and reliable power distribution with minimal maintenance needs.
