1250kVA Dry Type Transformer
Product Features:
Energy-saving Effectiveness: Utilizes advanced production technology, complete design drawings and technical documents, advanced production equipment, stable processing technology, and comprehensive measurement methods.
Reliable Operation: Performance indicators meet various standards, and customer usage has proven its reliability, reaching the national advanced level.
Maintenance-free: Low loss, low noise, obvious energy-saving effects, and maintenance-free.
Safe, Fireproof, Non-polluting: Can be directly operated at the load center, suitable for important or special environments such as high-rise buildings, commercial centers, airports, tunnels, chemical plants, nuclear power plants, etc.
Compact Size, Light Weight, Less Space Occupation, Easy Installation: Adapts to various installation environments and reduces space occupancy.

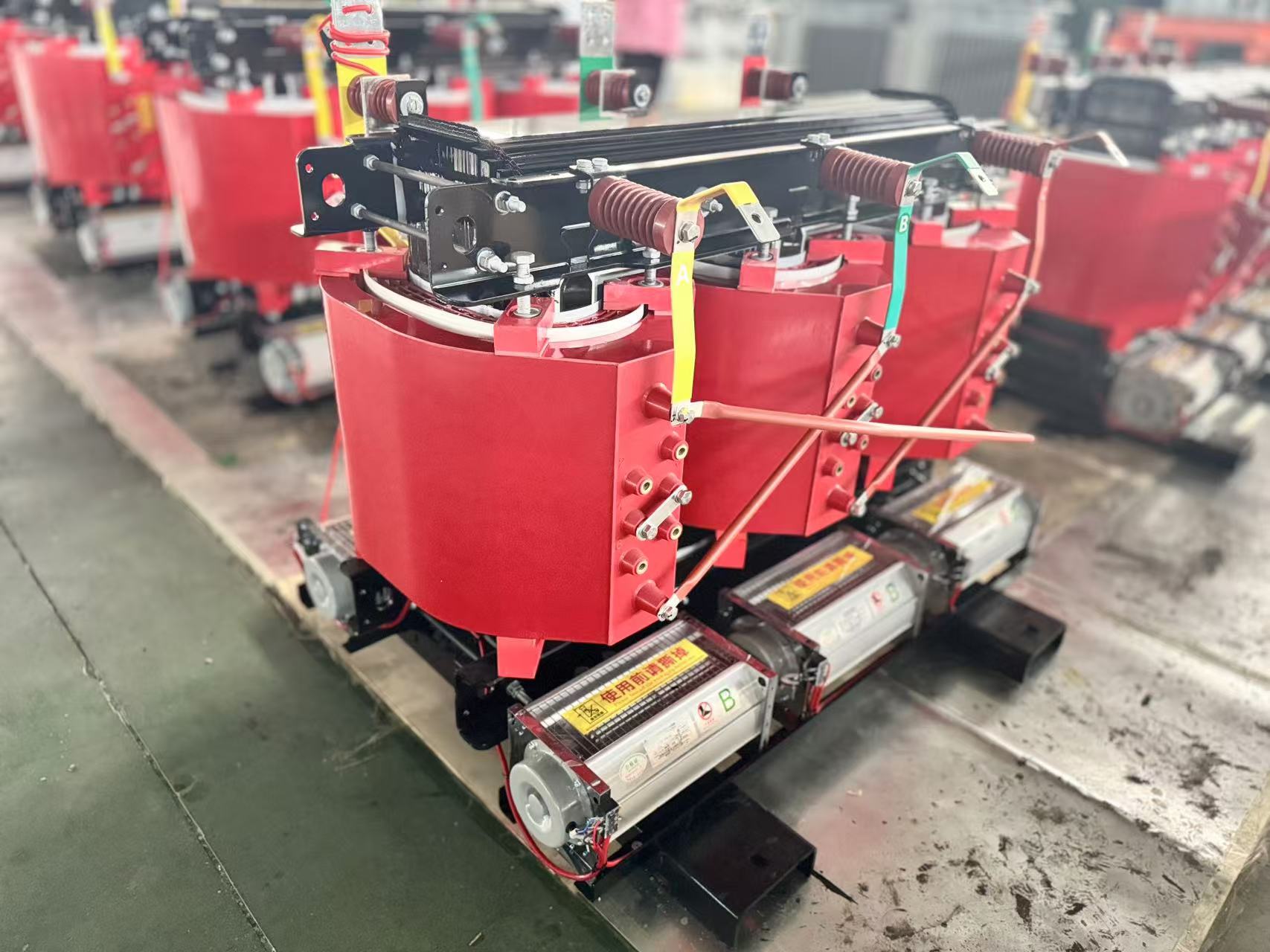

The SCB14-1250 is a three-phase dry-type power transformer designed with an encapsulated structure cast in epoxy resin. This transformer incorporates advanced foil winding technology on the high-voltage side, offering superior thermal management and energy efficiency. With a rated capacity of 1250kVA and voltage levels of 10kV/0.4kV, the SCB14-1250 transformer is ideal for a wide range of industrial, commercial, and residential applications that demand high performance, safety, and efficiency.
Model Meaning:
S: Denotes a three-phase power transformer, suitable for handling high-capacity loads.
C: Indicates an encapsulated dry-type transformer, where the core and windings are completely cast in epoxy resin for enhanced insulation and durability.
B: Refers to the use of foil winding technology on the high-voltage side, providing improved thermal management and reducing losses.
14: Represents the energy-saving performance level, with a higher number indicating reduced losses and better efficiency.
1250: Indicates the transformer’s rated capacity of 1250kVA, providing the power necessary for high-demand applications.
Technical Parameters:
Rated Capacity: 1250kVA.
Rated Voltage: High-voltage side: 10kV, Low-voltage side: 0.4kV.
Rated Current: High-voltage side: Approx. 72.2A, Low-voltage side: Approx. 1803A.
Connection Group Number: Dyn11, which improves system stability by reducing higher harmonic currents.
Insulation Thermal Class: Class F, ensuring that the transformer can withstand high operating temperatures.
Winding Temperature Rise Limit: 100K, which ensures efficient heat dissipation to maintain optimal operating conditions.
Partial Discharge Quantity: Less than 5pc, ensuring minimal electrical discharge and high insulation integrity.
Short Circuit Impedance: 4%, designed to protect against faults and short-circuits while maintaining operational stability.
Frequency: 50Hz, standard for most industrial and commercial power systems.
Application Scenarios:
The SCB14-1250 dry-type transformer is versatile and ideal for a wide range of applications, including:
Multi-story Buildings: Providing reliable power distribution in high-rise structures, where safety and compact design are essential.
Airports and Stations: Offering stable power supply to critical infrastructure in airports, railway stations, and transit hubs.
Ports and Power Plants: Ensuring uninterrupted power to large-scale industrial operations, including ports and energy generation plants.
Distribution Substations: Serving as a reliable step-down transformer in urban or industrial power distribution systems.
Flammable or Explosive Environments: Due to its dry-type, encapsulated design, it is especially suitable for environments where fire safety is a priority, such as chemical plants, nuclear power plants, or mining operations.
Product Features:
Energy-saving Effectiveness: The SCB14-1250 utilizes cutting-edge production technologies, including advanced design techniques, state-of-the-art manufacturing equipment, and thorough quality control measures. The result is a highly efficient transformer with minimal operational losses, providing long-term energy savings.
Reliable Operation: Built to meet national advanced standards, the SCB14-1250 has been extensively tested to ensure dependable performance. Customer feedback confirms its robust reliability, making it a trusted solution for critical power applications.
Maintenance-free Design: This transformer features low loss and low noise operation, with obvious energy-saving benefits. Its dry-type design means minimal maintenance is required, reducing operational downtime and maintenance costs over its service life.
Safe, Fireproof, and Non-polluting: The encapsulated construction ensures the SCB14-1250 is fireproof and non-polluting, making it safe for operation in environments with strict safety regulations. It is ideal for use in high-risk industries such as chemical plants, commercial centers, airports, tunnels, and nuclear power stations.
Compact Size, Light Weight, and Easy Installation: The SCB14-1250 is designed to occupy less space, making it easier to install in confined areas. Its lightweight design reduces transportation and installation complexity, making it an ideal choice for projects with space limitations or tight installation timelines.
In conclusion, the SCB14-1250 dry-type transformer offers exceptional performance, efficiency, and safety. With its encapsulated, fireproof construction, advanced foil winding technology, and low-maintenance design, it is perfect for applications in industrial plants, commercial buildings, and environments where safety and reliability are critical. Whether used in high-rise buildings, airports, or power plants, the SCB14-1250 ensures dependable, long-term operation while reducing operational costs and space requirements.
