100kVA Dry Type Transformer
Product Features:
Energy-saving Effectiveness: Utilizes advanced production technology, complete design drawings and technical documents, advanced production equipment, stable processing technology, and comprehensive measurement methods.
Reliable Operation: Performance indicators meet various standards, and customer usage has proven its reliability, reaching the national advanced level.
Maintenance-free: Low loss, low noise, obvious energy-saving effects, and maintenance-free.
Safe, Fireproof, Non-polluting: Can be directly operated at the load center, suitable for important or special environments such as high-rise buildings, commercial centers, airports, tunnels, chemical plants, nuclear power plants, etc.
Compact Size, Light Weight, Less Space Occupation, Easy Installation: Adapts to various installation environments and reduces space occupancy.

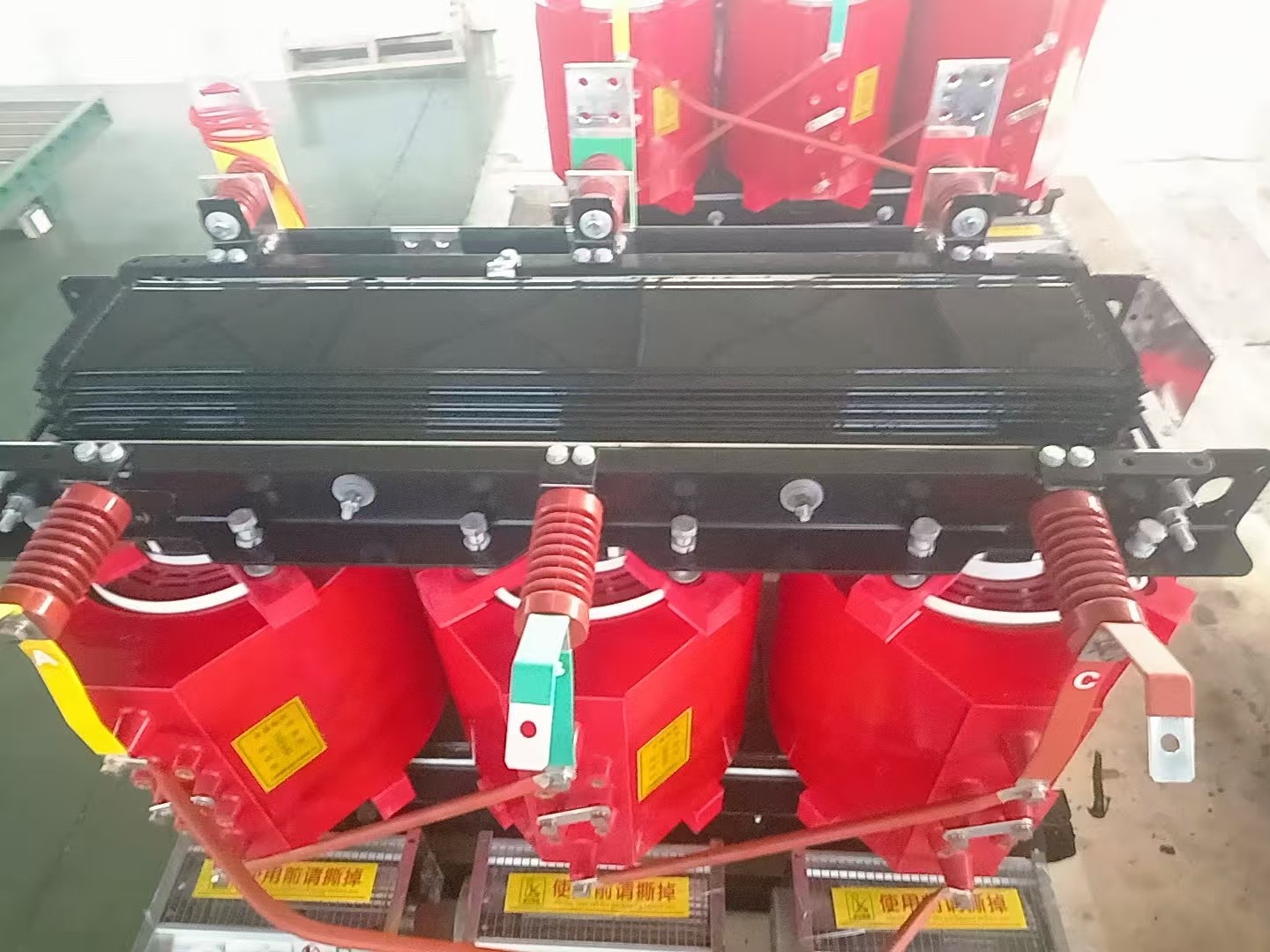

The SCB14-100 is a three-phase dry-type power transformer, featuring an encapsulated structure that is cast in high-quality epoxy resin. The transformer is designed with foil winding technology on the high-voltage side, ensuring optimal performance and high efficiency. It has a rated capacity of 100kVA and operates at voltage levels of 10kV on the high-voltage side and 0.4kV on the low-voltage side, making it suitable for various industrial and commercial applications that require reliable power distribution.
Model Meaning:
S: Indicates a three-phase power transformer, capable of efficiently managing higher loads and ensuring reliable power delivery.
C: Refers to the dry-type transformer being encapsulated in epoxy resin, providing excellent insulation, durability, and safety.
B: Denotes the use of foil winding technology on the high-voltage side, which reduces energy losses and enhances overall transformer efficiency.
14: Represents the energy-saving performance level of the transformer, with higher numbers indicating lower energy losses and better efficiency.
100: Specifies the transformer's rated capacity of 100kVA, ideal for medium-scale commercial and industrial applications.
Technical Parameters:
Rated Capacity: 100kVA.
Rated Voltage: High-voltage side: 10kV, Low-voltage side: 0.4kV.
Rated Current: High-voltage side: Approximately 5.8A, Low-voltage side: Approximately 144A.
Connection Group Number: Dyn11, providing improved system stability and suppression of higher harmonic currents.
Insulation Thermal Class: Class F, allowing the transformer to operate in high-temperature environments while maintaining safe and reliable performance.
Winding Temperature Rise Limit: 100K, ensuring the transformer remains within safe temperature limits during operation.
Partial Discharge Quantity: Less than 5pc, ensuring minimal electrical discharge and high insulation integrity.
Short Circuit Impedance: 4%, offering enhanced protection against faults and reducing potential damage to the system.
Frequency: 50Hz, making it compatible with standard industrial electrical systems.
Application Scenarios:
The SCB14-100 dry-type transformer is widely used across a variety of settings, including:
Multi-story Buildings: Perfect for high-rise buildings where space, fire safety, and efficient power distribution are crucial.
Airports and Stations: Provides reliable, energy-efficient power for public transportation hubs such as airports, railway stations, and bus terminals.
Ports and Power Plants: Ideal for powering critical infrastructure like ports and power plants, ensuring stable and efficient energy supply.
Distribution Substations: Suitable for use in distribution substations, effectively stepping down high-voltage electricity for local use.
Hazardous Environments: The dry-type, fire-resistant design makes it highly suitable for installation in areas with high fire risks, including chemical plants, tunnels, and nuclear power facilities.
Product Features:
Energy-saving Effectiveness: The SCB14-100 transformer incorporates advanced production technologies, including state-of-the-art materials and manufacturing processes. This results in reduced energy losses, lower operational costs, and improved efficiency, making it an excellent choice for energy-conscious users.
Reliable Operation: This transformer meets and exceeds national standards for performance and reliability. It has proven its ability to operate in demanding environments and has consistently demonstrated its longevity and reliability in customer applications.
Maintenance-free Design: The low-loss, low-noise operation of the SCB14-100 reduces maintenance requirements, making it a cost-effective solution for long-term use. Its design ensures minimal upkeep while still delivering optimal performance and efficiency.
Safe, Fireproof, Non-polluting: The encapsulated epoxy resin structure ensures the transformer is fireproof and non-polluting, making it safe for installation in critical environments. It is particularly suited for high-risk areas where safety and environmental considerations are paramount, such as airports, commercial buildings, and chemical plants.
Compact Size, Light Weight, Easy Installation: The SCB14-100 is designed to be space-efficient and lightweight, making it easy to transport and install in tight or restricted spaces. Its compact size minimizes the area it occupies, making it ideal for installations where space is limited.
In summary, the SCB14-100 dry-type transformer is a highly efficient, safe, and reliable solution for a wide range of commercial, industrial, and infrastructure applications. Its advanced energy-saving features, low-maintenance design, and suitability for hazardous environments make it an excellent choice for those looking for a durable and efficient power transformer. Whether used in high-rise buildings, airports, power plants, or hazardous environments, the SCB14-100 ensures reliable power distribution with minimal operational disruption.
