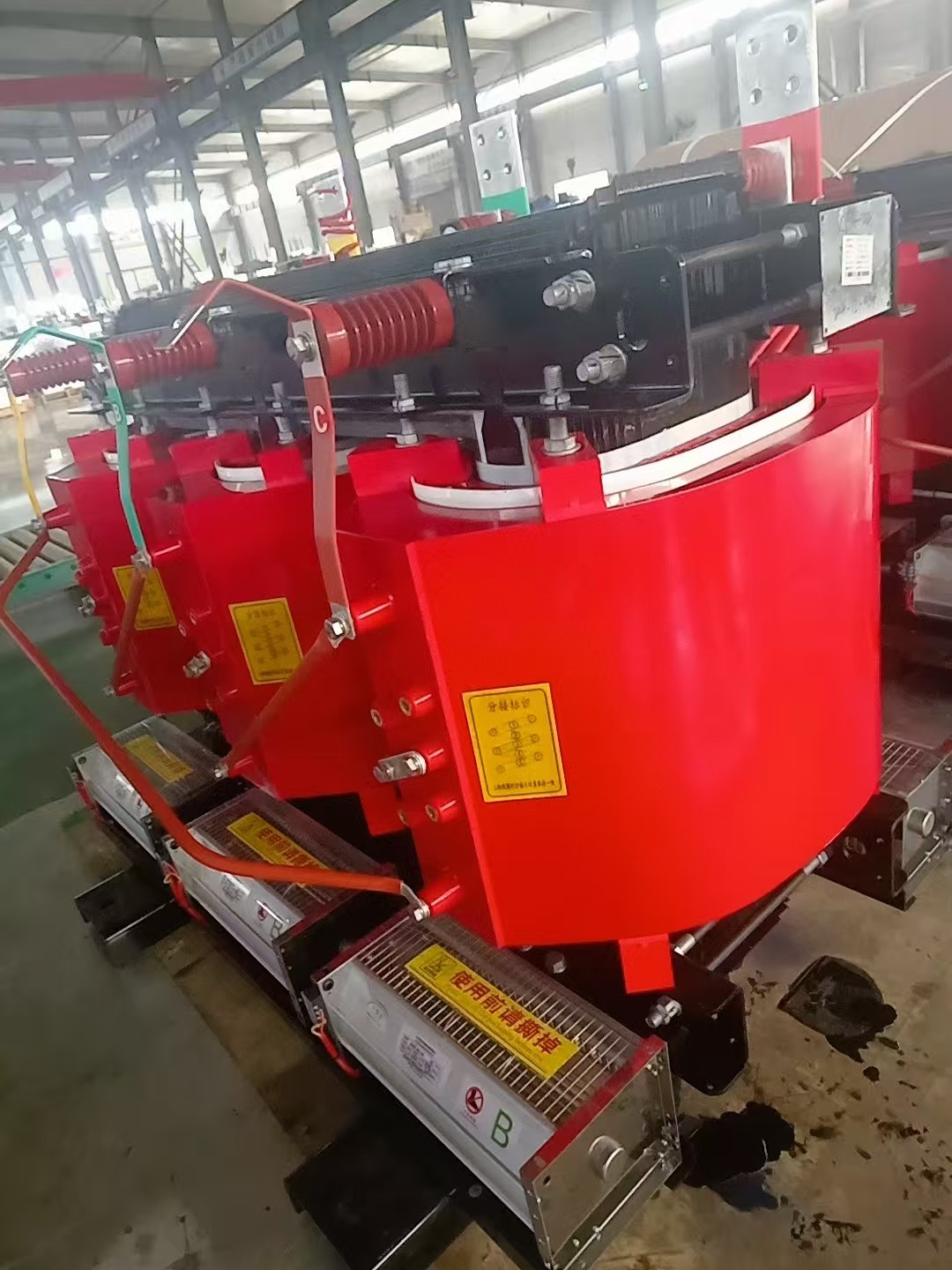

1000kVA Dry Type Transformer
Product Features:
Energy-saving Effectiveness: Utilizes advanced production technology, complete design drawings and technical documents, advanced production equipment, stable processing technology, and comprehensive measurement methods.
Reliable Operation: Performance indicators meet various standards, and customer usage has proven its reliability, reaching the national advanced level.
Maintenance-free: Low loss, low noise, obvious energy-saving effects, and maintenance-free.
Safe, Fireproof, Non-polluting: Can be directly operated at the load center, suitable for important or special environments such as high-rise buildings, commercial centers, airports, tunnels, chemical plants, nuclear power plants, etc.
Compact Size, Light Weight, Less Space Occupation, Easy Installation: Adapts to various installation environments and reduces space occupancy.
The SCB14-1000 is a state-of-the-art, three-phase dry-type power transformer with an encapsulated structure, specially designed using high-quality epoxy resin for insulation. It incorporates advanced foil winding technology on the high-voltage side. With a rated capacity of 1000kVA and voltage ratings of 10kV/0.4kV, this transformer is engineered for high performance and efficiency. Below are the detailed specifications and features of the SCB14-1000 dry-type transformer:
Model Meaning:
S: Refers to a three-phase power transformer, capable of handling substantial energy distribution.
C: Denotes an encapsulated dry-type transformer constructed with epoxy resin, which offers enhanced insulation and durability.
B: Highlights the use of foil winding technology on the high-voltage side, a modern and efficient design to minimize energy losses and improve reliability.
14: Signifies the transformer’s energy-saving performance level, with a higher number indicating lower operational losses and better efficiency.
1000: Represents the rated capacity of the transformer, which is 1000kVA, a substantial power rating suitable for large applications.
Technical Parameters:
Rated Capacity: 1000kVA – The transformer is designed to handle loads up to this capacity without compromising performance.
Rated Voltage:
High-voltage side: 10kV
Low-voltage side: 0.4kV
Rated Current:
High-voltage side: Approximately 2.3A
Low-voltage side: Approximately 114A
Connection Group Number: Dyn11 – This connection group helps in the suppression of higher harmonic currents, which improves the overall stability of the power system, reducing disturbances to connected equipment.
Insulation Thermal Class: Class F – Ensures the transformer operates safely at high temperatures, providing an added layer of protection for the internal components.
Winding Temperature Rise Limit: 100K – The transformer is designed to keep temperature rise under control, ensuring optimal and reliable performance over time.
Partial Discharge Quantity: Less than 5pc – Indicates minimal electrical discharges within the insulation, ensuring the longevity and reliability of the transformer.
Short Circuit Impedance: 4% – A key parameter that influences the transformer’s ability to withstand short circuit conditions and impacts the protection system design.
Frequency: 50Hz – Suitable for standard grid applications and regions with 50Hz frequency power systems.
Application Scenarios:
The SCB14-1000 dry-type transformer is highly versatile and can be deployed across a wide range of environments, particularly where fire safety and low maintenance are crucial. Key applications include:
Multi-Story Buildings: Essential for reliable power distribution in commercial and residential high-rise buildings.
Airports and Stations: For critical infrastructure where continuous, uninterrupted power supply is necessary.
Ports and Distribution Substations: Ideal for power distribution systems in industrial and large-scale facilities.
Power Plants: Used in generating plants for efficient power distribution to the grid or local networks.
Flammable and Explosive Environments: The dry-type encapsulated structure makes it ideal for use in areas with strict fire prevention requirements, such as chemical plants or high-risk industrial settings.
Product Features:
Energy-saving Effectiveness: The SCB14-1000 transformer integrates cutting-edge production technologies and comprehensive design plans to ensure minimal energy losses, making it a highly efficient choice for both commercial and industrial applications.
Reliable Operation: Performance benchmarks meet national standards and customer feedback indicates a proven history of reliability. This transformer is designed for optimal operation under varied and demanding conditions, ensuring it remains at the forefront of technological advancement.
Maintenance-free: With its energy-efficient design and durable construction, the SCB14-1000 transformer requires minimal to no maintenance. This low-maintenance operation translates into reduced downtime and operational costs.
Safe, Fireproof, and Non-polluting: The transformer’s epoxy resin encapsulation offers exceptional fire resistance and safety. Its environmentally friendly design makes it suitable for installations in sensitive or critical environments, such as hospitals, airports, and high-rise commercial buildings.
Compact, Lightweight, and Space-saving: Designed to fit into tight spaces, the transformer is lighter and more compact than traditional transformers, simplifying installation and reducing space requirements. This makes it ideal for environments with limited installation space.
In conclusion, the SCB14-1000 dry-type transformer is a reliable, energy-efficient, and safe solution for power distribution, offering outstanding performance in a variety of applications, from industrial complexes to high-rise buildings and critical infrastructure. Its advanced features and minimal maintenance needs ensure long-lasting, cost-effective operation.
