1000kVA Dry Transformer
1. Energy Efficient: Low loss design ensures significant energy savings and cost efficiency.
2. Flame Retardant & Explosion-Proof: Safe, pollution-free, and maintenance-free, reducing expenses and enabling installation near load centers.
3. Low Noise: Optimized design and high magnetic conductivity materials effectively lower noise levels.
4. Strong Overload Capability: F-class rating ensures excellent heat resistance and reliable performance under overloading.
5. Easy Maintenance: Oil-free design allows for re-energization after long-term shutdown, simplifying upkeep.
6. Durable Enclosure: Robust casing with excellent heat dissipation and flexible wiring configurations.
Product Details

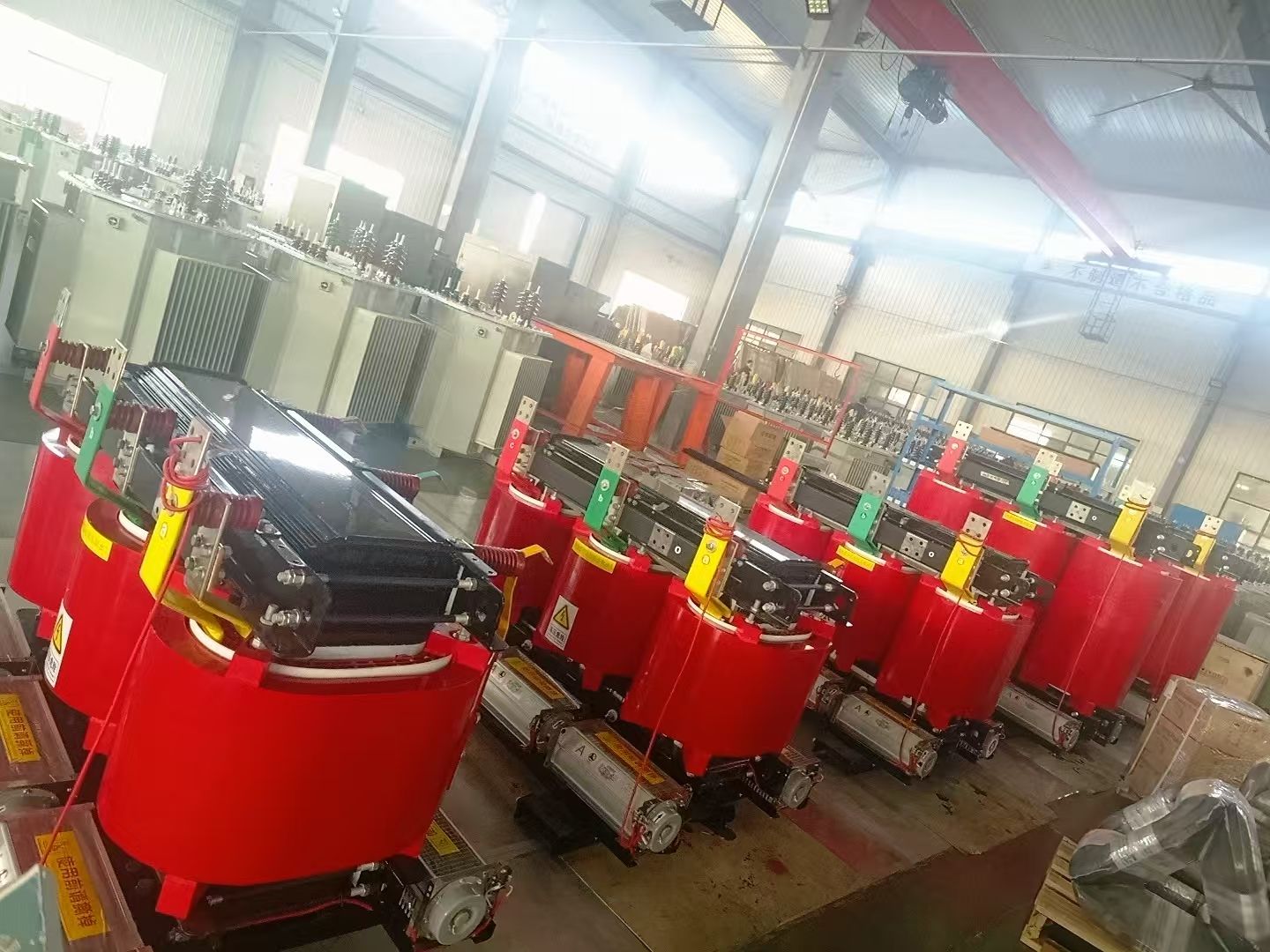

The SCB12-1000kVA Dry Transformer is a highly reliable, safe, and energy-efficient solution for power distribution, designed to operate without the need for transformer oil. This feature makes it particularly well-suited for indoor and environmentally sensitive applications, where minimizing the risk of leakage and reducing environmental impact are crucial.
Key Features
Safe and Flame Retardant:
The transformer is pollution-free and explosion-proof with a high flame-retardant rating, ensuring it operates safely in environments that require stringent safety measures.
Energy Efficiency:
The SCB12-1000kVA operates with low loss, low noise, and minimal temperature rise, providing considerable energy savings and reducing the overall operational cost.
Strong Overload Capacity:
Equipped with F-class insulation, it has excellent heat resistance, ensuring stable performance even under heavy load conditions.
Moisture and Dust Resistance:
The coils of the transformer are resistant to moisture and dust, ensuring reliable and durable operation in various environmental conditions. It also has high mechanical strength to with stand harsh conditions.
Low Maintenance:
The oil-free design reduces the need for regular maintenance and allows the transformer to be re-energized even after long-term shutdowns.
Durable Construction:
With epoxy resin-cast windings, the transformer offers excellent short-circuit resistance, impact toughness, and superior lightning impulse performance, making it a long-lasting and robust choice.
Applications
The SCB12-1000kVA Dry Transformer is ideal for locations where a safe, low-maintenance, and efficient power solution is needed:
Industrial Plants: Perfect for manufacturing environments requiring a stable and safe power supply.
Commercial Buildings: Well-suited for office complexes, hotels, shopping malls, and more.
Schools and Hospitals: Ensures reliable power distribution for educational and healthcare facilities.
Other Locations: Can also be used in residential areas or other environments needing a reliable and environmentally friendly transformer.
Specifications
*Technical Data for 10KV Three Phase Oil-Immersed Distribution Transformer
Rated Power (KVA) | High Voltage (KV) | Low Voltage (KV) | Vector Group | Short Circuit Dependence(%) | Loss(W) | No Load Current(%) | |
No-load Loss | Load Loss(W) | ||||||
30 | 4.16 12.47 13.2 13.8 24.94 34.5 | 0.208 0.4 0.6 | Dyn11 Yyn0 | 4 | 100 | 600 | 2.1 |
50 | 130 | 870 | 2 | ||||
63 | 150 | 1040 | 1.9 | ||||
80 | 180 | 1250 | 1.8 | ||||
100 | 120 | 1500 | 1.6 | ||||
125 | 240 | 1800 | 1.5 | ||||
160 | 280 | 2200 | 1.4 | ||||
200 | 340 | 2600 | 1.2 | ||||
250 | 400 | 3050 | 1.2 | ||||
315 | 480 | 3650 | 1.1 | ||||
400 | 570 | 4300 | 1 | ||||
500 | 680 | 5150 | 1 | ||||
630 | 4.5 | 810 | 6200 | 0.9 | |||
800 | 980 | 7500 | 0.8 | ||||
1000 | 1150 | 10300 | 0.7 | ||||
1250 | 1360 | 12000 | 0.6 | ||||
1600 | 1640 | 14500 | 0.6 | ||||
2000 | 5 | 1940 | 17400 | 0.6 | |||
2500 | 2300 | 20200 | 0.5 | ||||
*20kV Epoxy-resin Insulation Dry-type Transformer
Rated Power (KVA) | Voltage Combined |
Vector No-load Group Loss(kw) | Under different insulation heat-resisting rank load loss(W) |
No-load Current (%) |
Short Circuit mpedance (%) | |||||
HV(KV) | High Pressurd Tapping | LV(KV) | 130℃(B) (100℃) | 155℃(B) (120℃) | 180℃(B) (145℃) | |||||
50 | 20 | ±2x1.25% ±5% | 0.4 | 340 | 1160 | 1230 | 1310 | 2 | 6.0 | |
100 | 540 | 1870 | 1990 | 2130 | 1.8 | |||||
160 | 670 | 2330 | 2470 | 2640 | 1.6 | |||||
200 | 730 | 2770 | 2940 | 3140 | 1.6 | |||||
250 | 840 | 3220 | 3420 | 3660 | 1.3 | |||||
315 | 970 | 3850 | 4080 | 4360 | 1.3 | |||||
400 | 1150 | 4650 | 4840 | 5180 | 1.1 | |||||
500 | Dynl1 Yyn0 | 1350 | 5460 | 5790 | 6190 | 1.1 | ||||
630 | 1530 | 6450 | 6840 | 7320 | 1 | |||||
800 | 1750 | 7790 | 8260 | 8B40 | 1 | |||||
1000 | 2070 | 9220 | 9780 | 10400 | 0.85 | |||||
1250 | 2380 | 10800 | 11500 | 12300 | 0.85 | |||||
1600 | 2790 | 13000 | 13800 | 14800 | 0.85 | |||||
2000 | 3240 | 15400 | 16300 | 17500 | 0.7 | |||||
2500 | 3870 | 18200 | 19300 | 20700 | 0.7 | |||||
