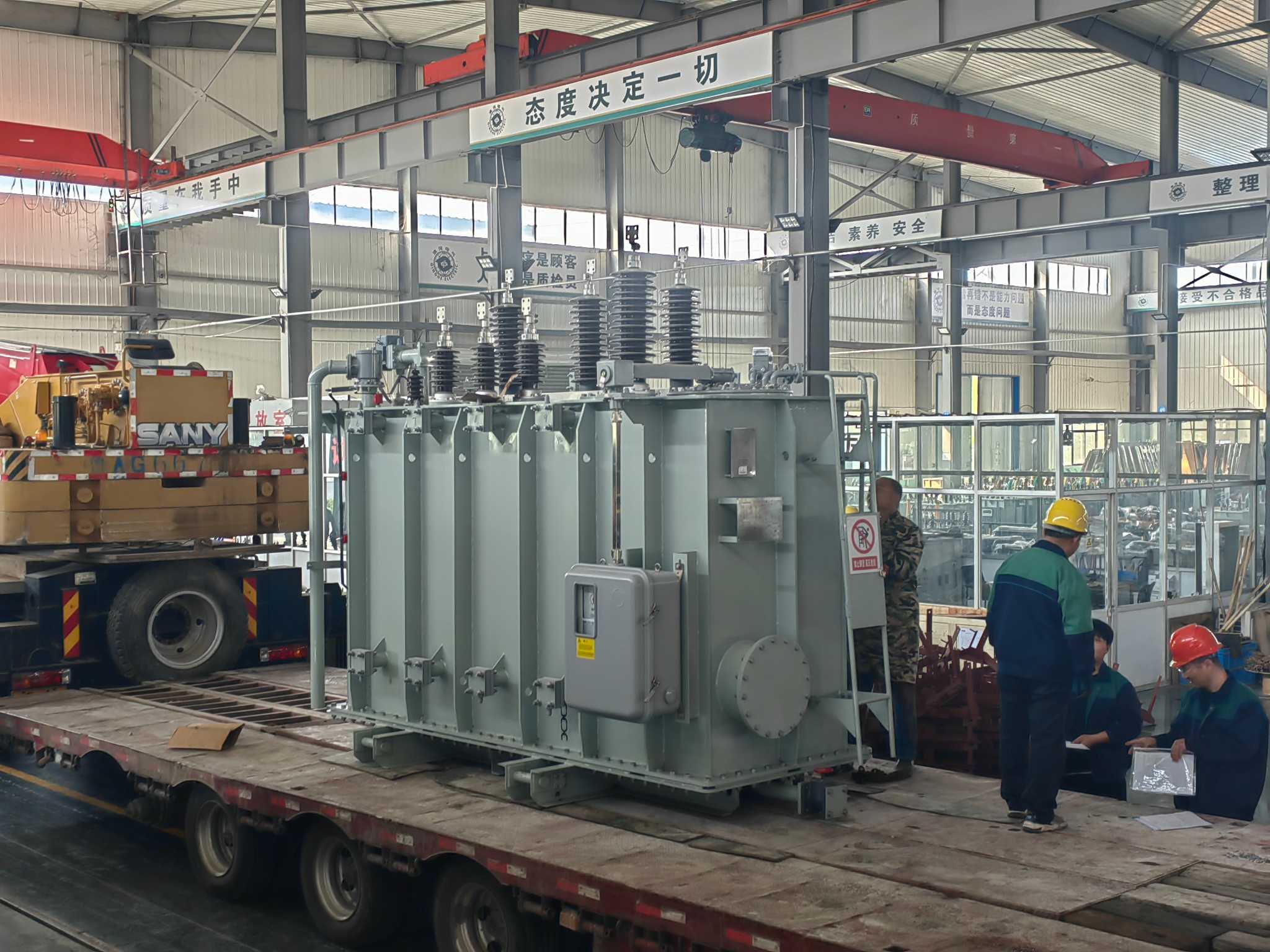

100kVA Oil-ImmersedTransformer
High Efficiency and Energy Saving: Utilizing new materials and optimized design, it complies with the latest energy efficiency standards, reducing energy consumption and operational costs.
Environmental Protection and Safety: High-quality insulating oil is used, providing excellent insulation and heat dissipation properties; additionally, it is equipped with an explosion-proof device to ensure safe operation.
Safety and Stability: It has good overload capacity and short-circuit resistance, ensuring long-term stable operation.
Low Noise: The structure of the core and windings is optimized, effectively reducing the noise level during operation.
Easy Installation: The size is moderate, and the weight is light, facilitating transportation and installation.
The S22-M-100 is an oil-immersed transformer with a rated capacity of 100kVA (kilovolt-amperes). This model belongs to the S22 series, which is a new generation of high-efficiency and energy-saving distribution transformers. It features high energy efficiency ratios and reliability, meeting the latest energy efficiency standards.
Main Features:
High Efficiency and Energy Saving: Utilizing new materials and optimized design, it complies with the latest energy efficiency standards, reducing energy consumption and operational costs.
Environmental Protection and Safety: High-quality insulating oil is used, providing excellent insulation and heat dissipation properties; additionally, it is equipped with an explosion-proof device to ensure safe operation.
Safety and Stability: It has good overload capacity and short-circuit resistance, ensuring long-term stable operation.
Low Noise: The structure of the core and windings is optimized, effectively reducing the noise level during operation.
Easy Installation: The size is moderate, and the weight is light, facilitating transportation and installation.
Technical Parameters (Example):
Rated Capacity: 100kVA
Voltage Levels: Typically 10kV/0.4kV or other configurations
Cooling Method: Oil-immersed self-cooling
Connection Group: Yyn0 or Dyn11
Insulation Class: Class B or higher
Protection Class: IP20 or higher
Application Scenarios:
Small and Medium Industrial Fields: Suitable for small and medium-sized factories, workshops, and other occasions requiring reliable power supply.
Commercial Fields: Suitable for small and medium-sized shopping malls, office buildings, hotels, and other facilities.
Civil Fields: Suitable for residential areas, schools, hospitals, and other public buildings, providing reliable power support.
Special Environments: Suitable for communication base stations, research institutions, and other places with certain power quality requirements.
