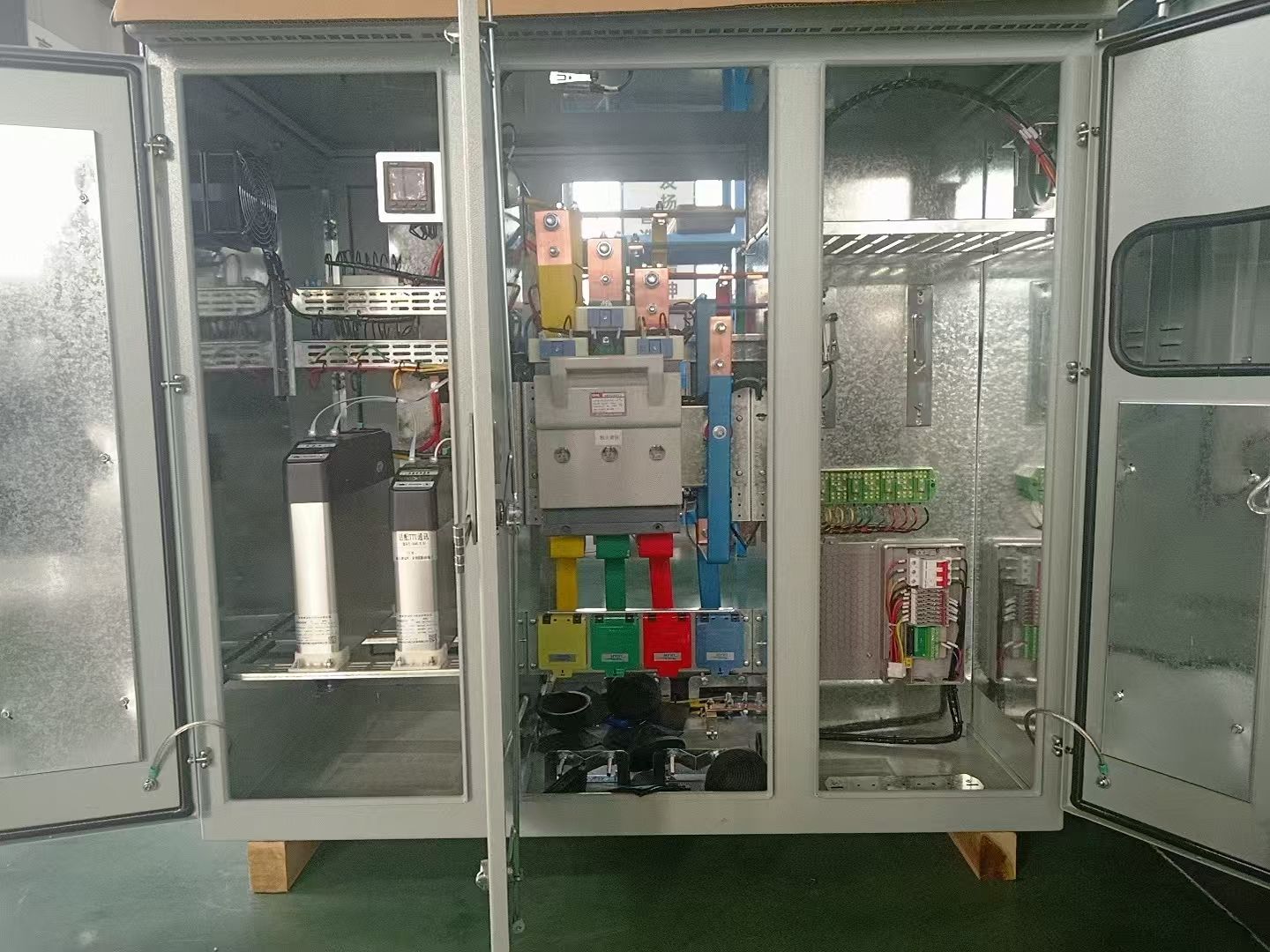

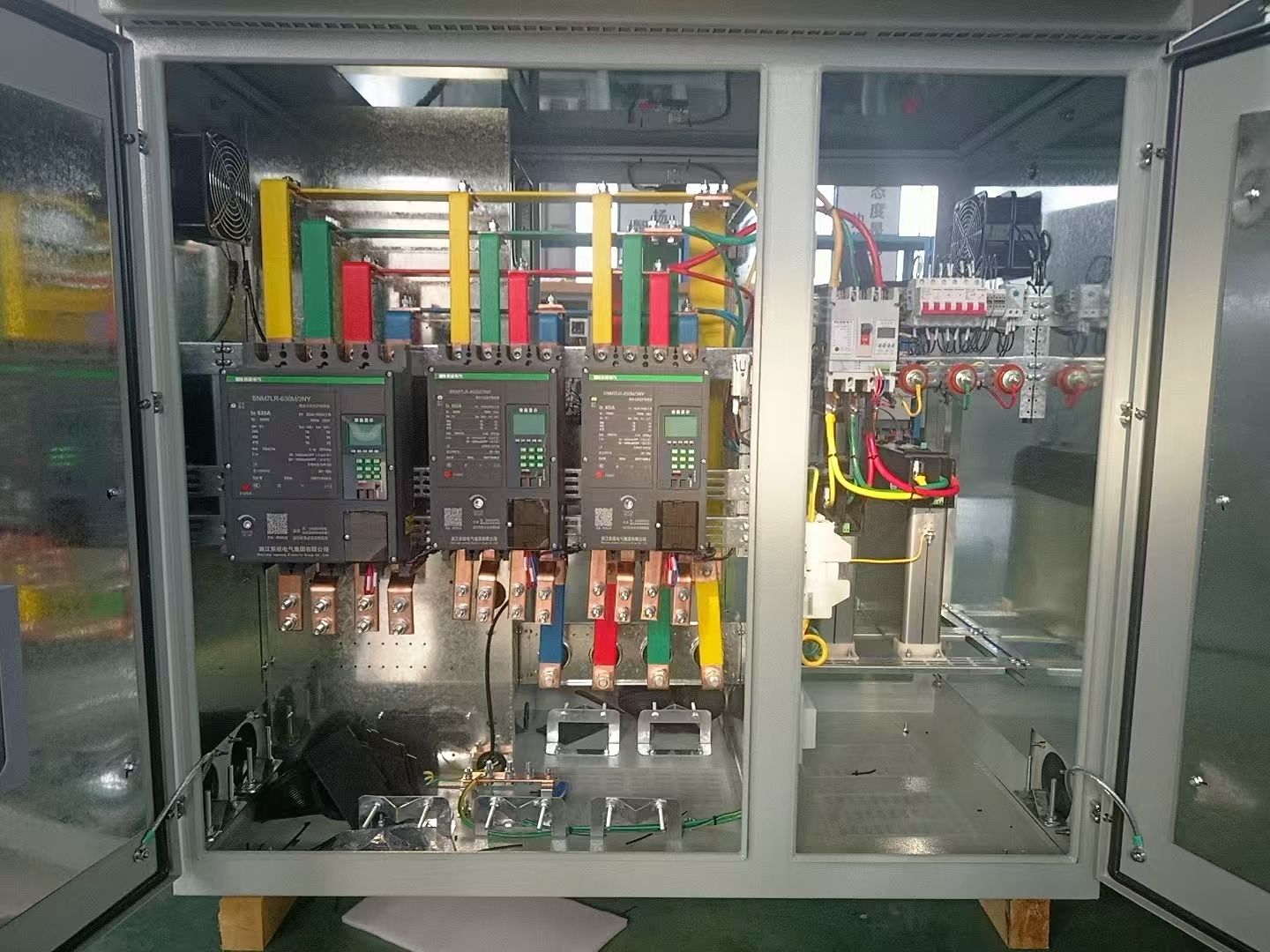

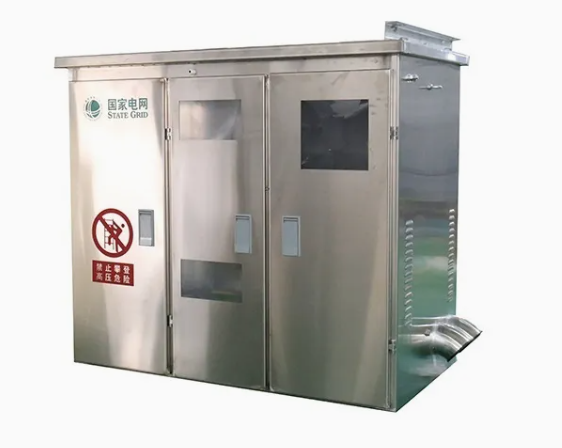

200KVA Distribution box
The full name of JP-200 (Integrated Distribution Cabinet) is Low Voltage Integrated Distribution Box, which is a new type of integrated control box that integrates power distribution, metering, protection, control, and reactive power compensation.
It is suitable for urban and rural power supply networks with an AC frequency of 50Hz and a rated voltage of 400V or below, and is used in conjunction with 10 (20) kV three-phase or single-phase pole-mounted transformers.
The JP cabinet integrates functions such as distribution, protection, metering, and reactive power compensation, and is suitable for outdoor pole-mounted transformers on the low-voltage side.
Main functions:
Power distribution: Distributes electricity from transformers or upstream power sources to various power circuits.
Protection function: Equipped with circuit breakers, fuses, and other protective devices to provide protection against overloading and short circuits.
Metering function: Optional power meters can be installed for power measurement.
Monitoring function: Smart monitoring modules can be configured to monitor current, voltage, power, and other parameters in real-time.
Main features:
Modular design: Adopting a modular structure, it is easy to install, maintain, and expand.
Safe and reliable: Equipped with multiple protection mechanisms to ensure safe and stable operation.
Easy to operate: Designed with a humanized approach, operation is simple and convenient.
High adaptability: Suitable for a variety of environmental conditions, such as indoor, outdoor, damp, high temperature, etc.
High protection level: Usually has a high protection level (such as IP54) to prevent dust and water from entering and extend the service life.
Technical parameters (example):
Rated voltage: AC 380V or other configurations
Rated frequency: 50Hz or 60Hz
Protection level: IP54 or higher
Cabinet material: High-quality cold-rolled steel plate or stainless steel
Color: RAL7035 gray or other custom colors
Application scenarios:
Industrial field: Suitable for factories, production workshops, and other occasions that require a large amount of power distribution and management.
Commercial field: Suitable for shopping malls, office buildings, hotels, and other facilities to provide reliable power security.
Civil field: Suitable for residential areas, schools, hospitals, and other public buildings to ensure daily power needs.
Special environments: Suitable for communication base stations, research institutions, and other places with certain power quality requirements.
