Collector Substation

Product Details

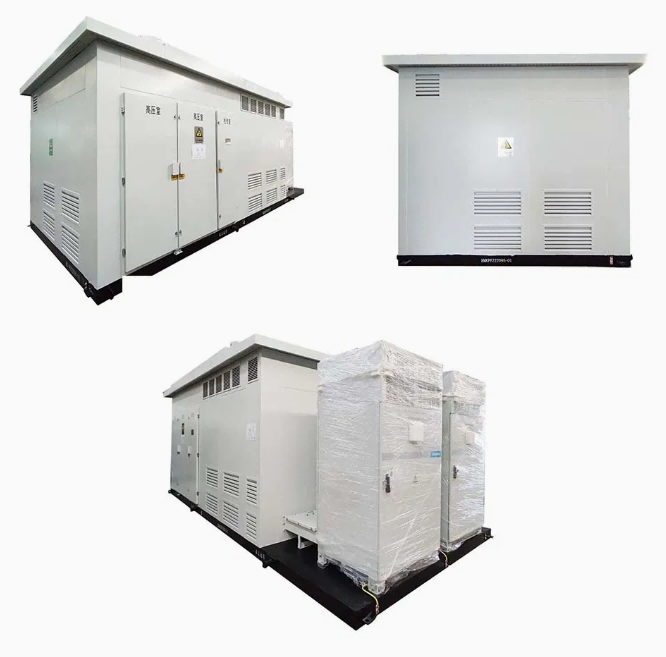

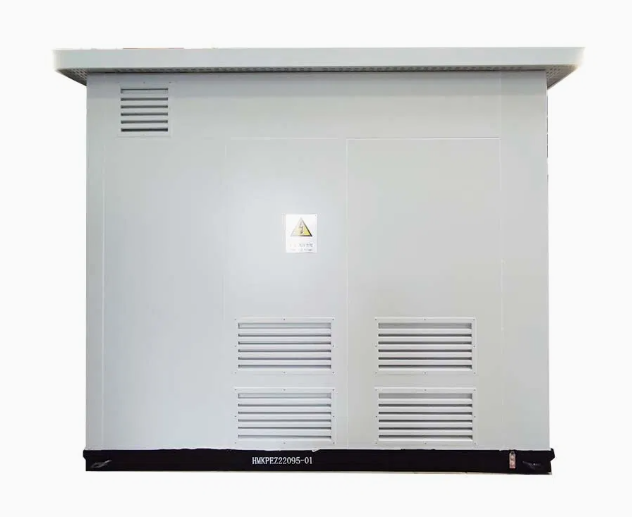

The functional wind power photovoltaic combined box transformer is an all-in-one substation designed specifically for wind farms and photovoltaic fields. Pre-assembled in the factory, it includes the booster transformer, high-voltage switch, low-voltage switch, and other auxiliary equipment, all housed in a single unit. The product integrates the advantages of Oubian and Mebian technologies, offering a new type of booster equipment tailored to the specific needs of renewable energy sectors. With proven performance, it meets the rigorous requirements of wind farms and photovoltaic power stations.

Product Features

• Complete Set: Combines multiple electrical components into one pre-assembled unit for simplicity and efficiency.

• Isolation Port: High-voltage side features an isolation port for power changeover without interrupting service.

• Durability: Built for use in harsh environments, including beaches and deserts.

• Oil-Immersed Fuse: Uses a reliable, leak-proof oil-immersed fuse to ensure safe operation.

• Certified Quality: Successfully passed the type test at the National Electrical Equipment Quality Testing Center.

Application

Wind farms, photovoltaic power stations, harsh natural environments (beach, desert).

Product Parameters

Type Test: Passed the type test at the National Electrical Equipment Quality Testing Center (Wugao Institute).

Key Components:

• Booster transformer

• High-voltage switch

• Low-voltage switch

• Auxiliary equipment

Performance: Meets the operational requirements of wind farms and photovoltaic stations.
